Security Hood Switch Test: Test
WARNING: This page is about a different variant/trim than selected.
- Security Hood Switch - Test
  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
|

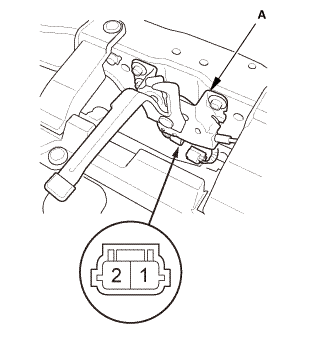

1. Open the hood 2. Disconnect the connector

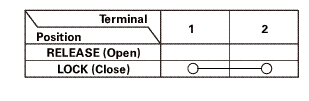

3. Check for continuity between the terminals in each switch position according to the table
4. If the continuity is not as specified, the security hood switch is faulty; replace the hood latch (A)
5. Connect the connector.
|
