Trunk Lid Release Actuator Test: Test

WARNING: This page is about a different variant/trim than selected.

1. Trunk Lid Release Actuator - Test

GHH130834GHH130835Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
GHH130834GHH130835Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

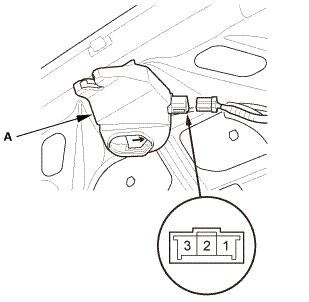

 1. Disconnect the connector

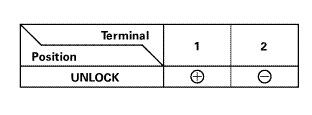

2. Check actuator operation by connecting power and ground according to the table.NOTE: To prevent damage to the actuator, apply battery voltage only momentarily

3. If the actuator does not work, the trunk lid latch switch/trunk release actuator is faulty; replace the trunk lid latch (A)

4. Connect the connector.
