Immobilizer-Keyless Control Unit Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2012), or SRS Component Location Index (2013 - 2015) and the precautions and procedures - Refer to: SRS Precautions and Procedures (2012), or SRS Precautions and Procedures (2013 - 2015) before doing repairs or service.

1. Upper Column Cover

Courtesy of HONDA, U.S.A., INC.

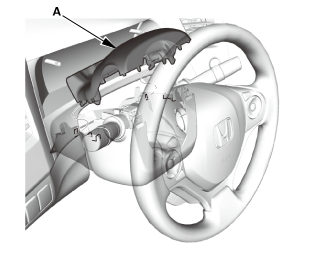

1. Remove the upper column cover (A).

2. Lower Column Cover

Courtesy of HONDA, U.S.A., INC.

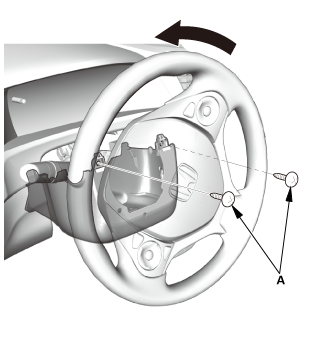

1. Remove the screws (A).

Courtesy of HONDA, U.S.A., INC.

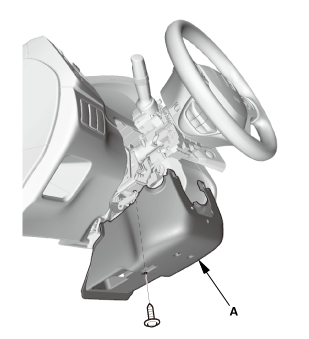

2. Remove the lower column cover (A).

3. Immobilizer-Keyless Control Unit

Courtesy of HONDA, U.S.A., INC.

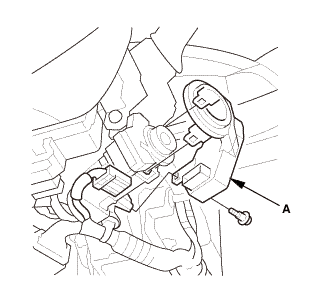

1. Disconnect the connector

2. Remove the immobilizer-keyless control unit (A).
