Keyless Access Control Unit Removal and Installation: Removal
WARNING: This page is about a different variant/trim than selected.
- Keyless Access Control Unit
 Courtesy of HONDA, U.S.A., INC.
|

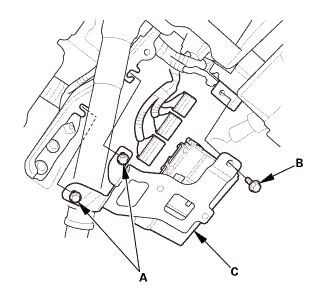

1. Loosen the bolts (A), then remove the bolt (B) 2. Remove the keyless access control unit (C)
3. Disconnect the connectors.
|
 Courtesy of HONDA, U.S.A., INC.
|

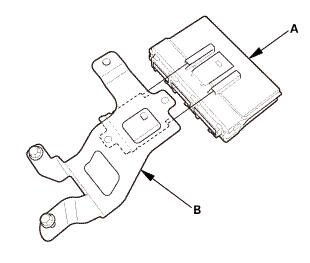

4. Remove the keyless access control unit (A) from the bracket (B). |
