Keyless Buzzer Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Keyless Buzzer

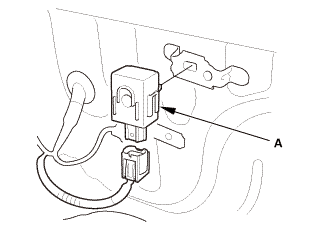

    GHH130885Courtesy of HONDA, U.S.A., INC.
    		 1. Install the keyless buzzer (A)

    2. Connect the connector.
  2. Rear Bumper

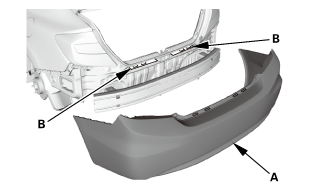

    GHH130886Courtesy of HONDA, U.S.A., INC.
    		 1. With the help of an assistant, install the rear bumper (A) to the upper brackets (B).

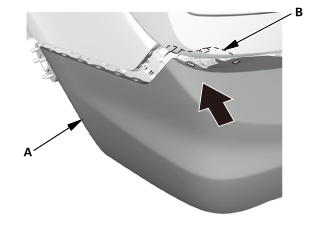

    GHH130887Courtesy of HONDA, U.S.A., INC.
    		 2. With the help of an assistant, install the rear bumper (A) to the side bracket (B). Repeat this step on the opposite side.
    GHH130888Courtesy of HONDA, U.S.A., INC.
    		 3. Install the rear bumper (A) to the side spacer (B). Repeat this step on the opposite side.

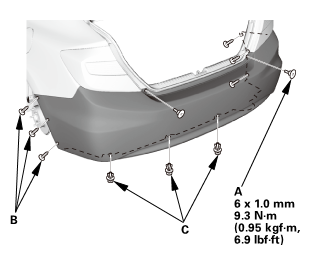

    GHH130889Courtesy of HONDA, U.S.A., INC.
    		 4. Install the bolts (A), screws (B), and clips (C).
