Trunk Lid Opener Lock Switch Test: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Front Door Sill Trim

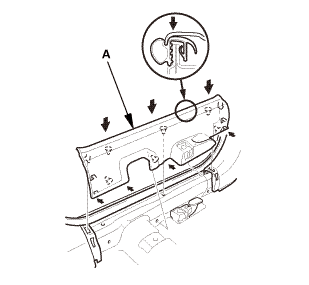

    GHH130895Courtesy of HONDA, U.S.A., INC.
    		 1. Install the front door sill trim (A).

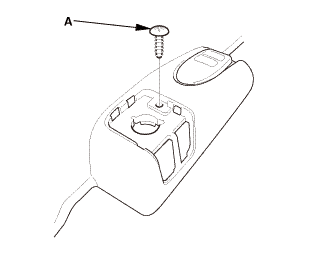

    GHH130896Courtesy of HONDA, U.S.A., INC.
    		 2. Install the screw (A).

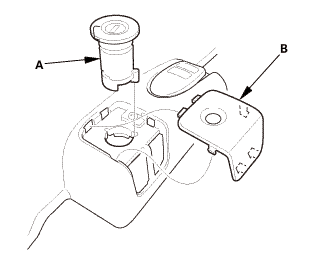

    GHH130897Courtesy of HONDA, U.S.A., INC.
    		 3. Install the opener lock cylinder (A)

    4. Install the cap (B).
