Trunk Lid Opener Lock Switch Test: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Front Door Sill Trim

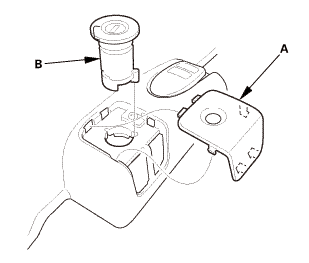

    GHH130890Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the cap (A)

    2. Remove the opener lock cylinder (B).
    GHH130891Courtesy of HONDA, U.S.A., INC.
    		 3. Remove the screw (A).

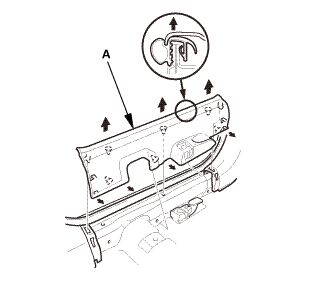

    GHH130892Courtesy of HONDA, U.S.A., INC.
    		 4. Remove the front door sill trim (A).
