Trunk Lid Outer Handle Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

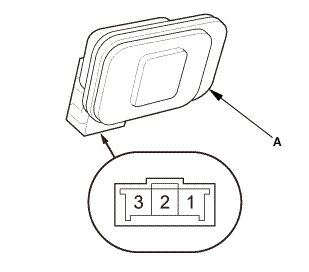

  1. Trunk Lid Outer Handle Switch - Test
    GHH130900GHH130901Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH130900GHH130901Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

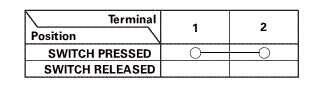

    		 1. Check for continuity between the terminals in each switch position according to the table

    2. If the continuity is not as specified, replace the trunk lid outer handle switch (A).
