Navigation Module: Testing and Inspection

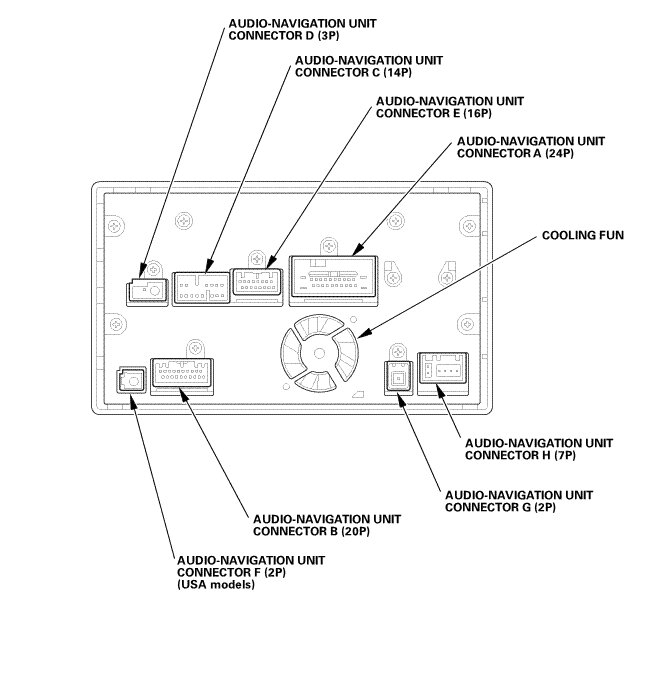

Navigation Unit Connector for Inputs and Outputs

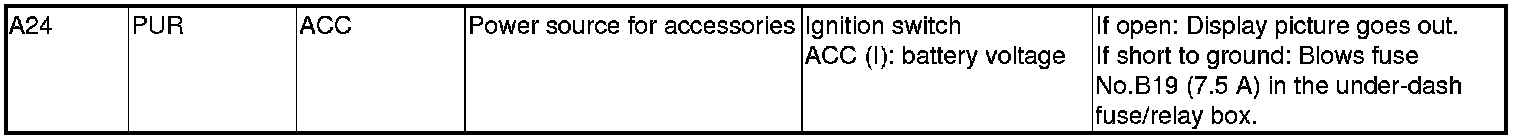

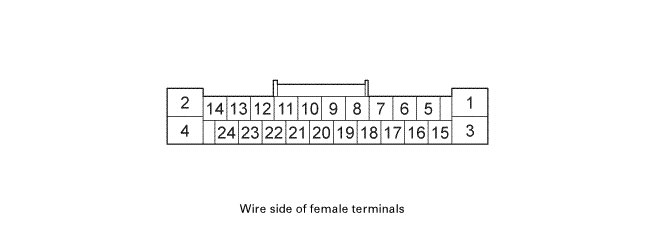

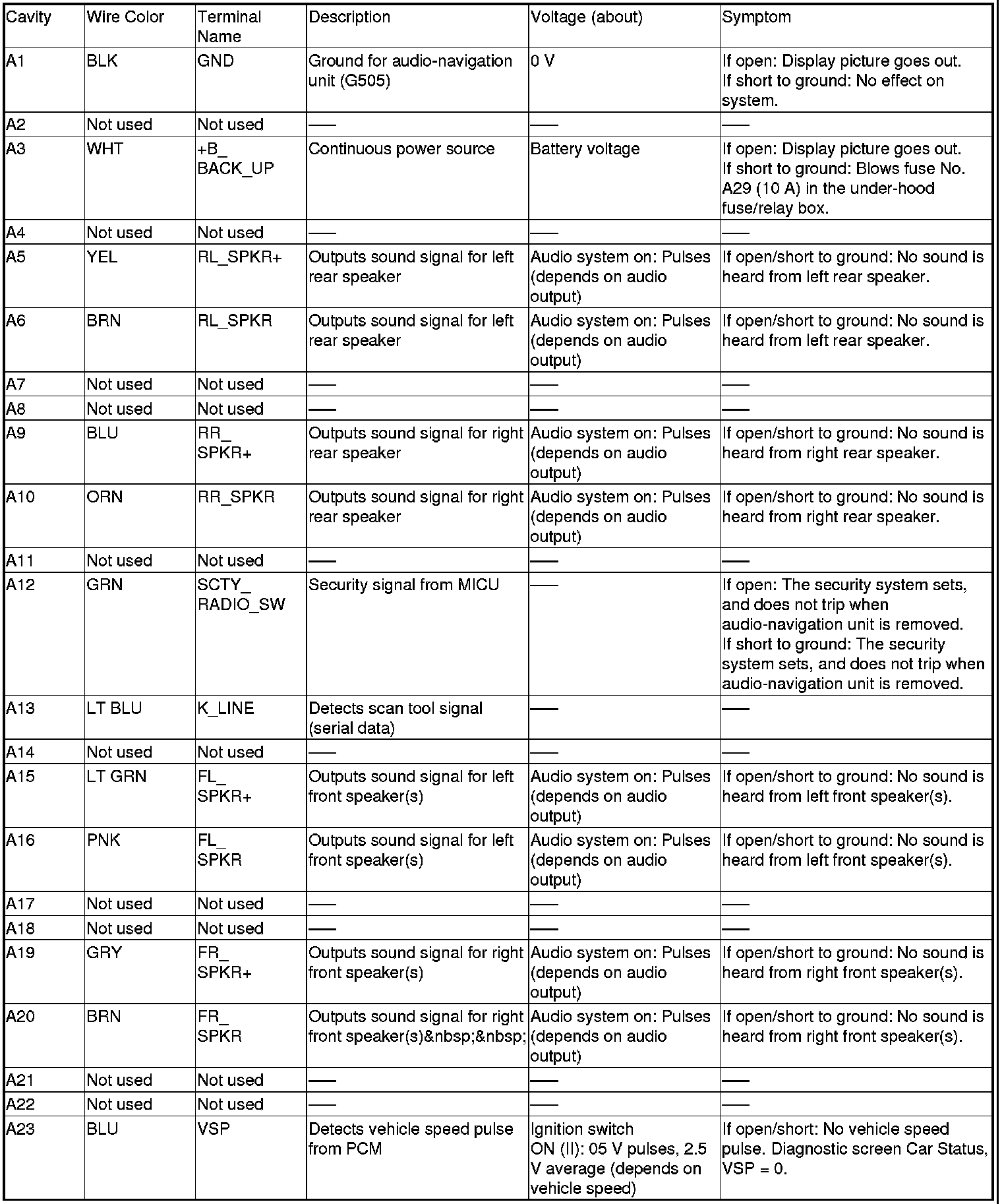

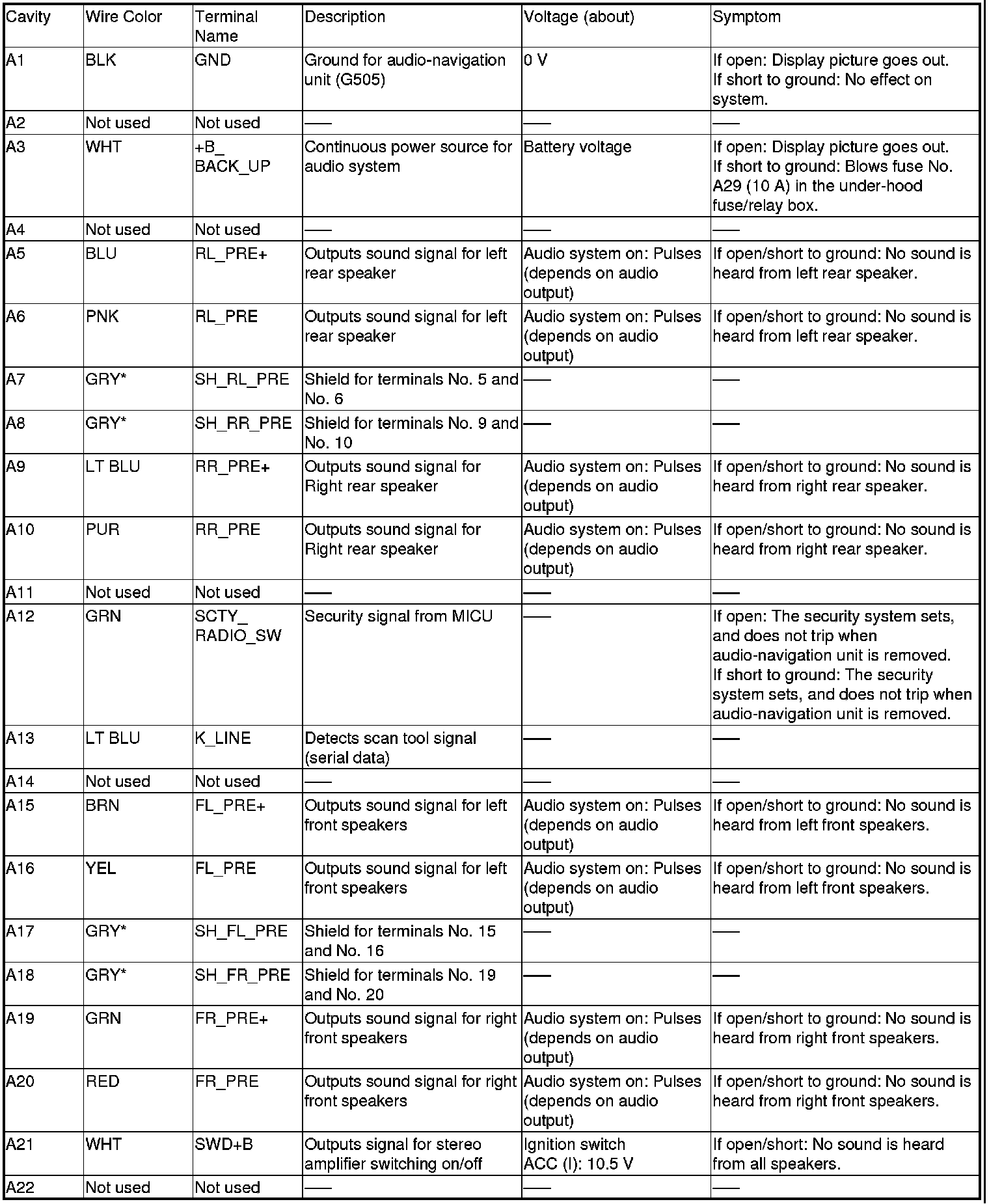

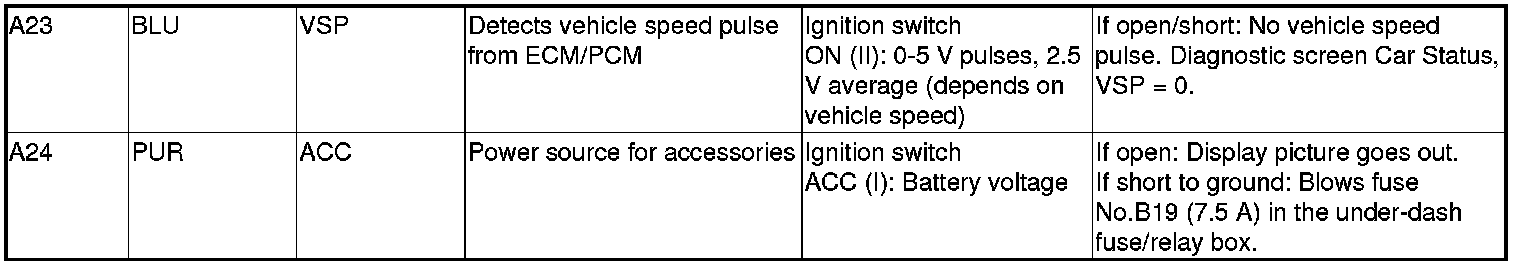

AUDIO-NAVIGATION UNIT CONNECTOR A (24P) (without premium audio)

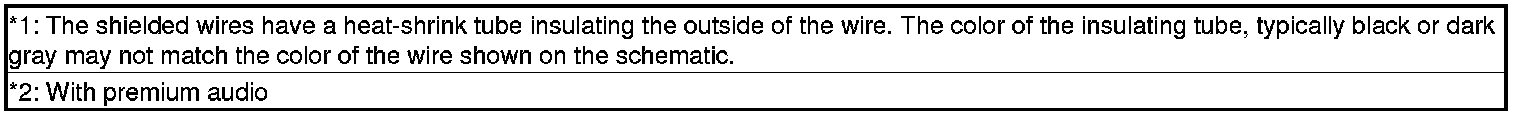

AUDIO-NAVIGATION UNIT CONNECTOR A (24P) (with premium audio)

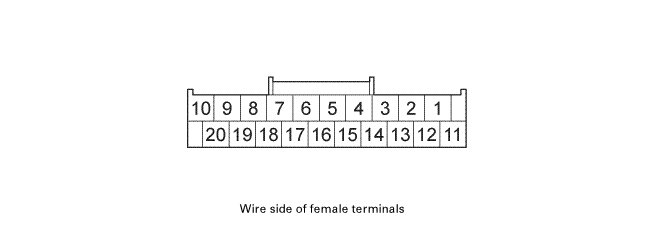

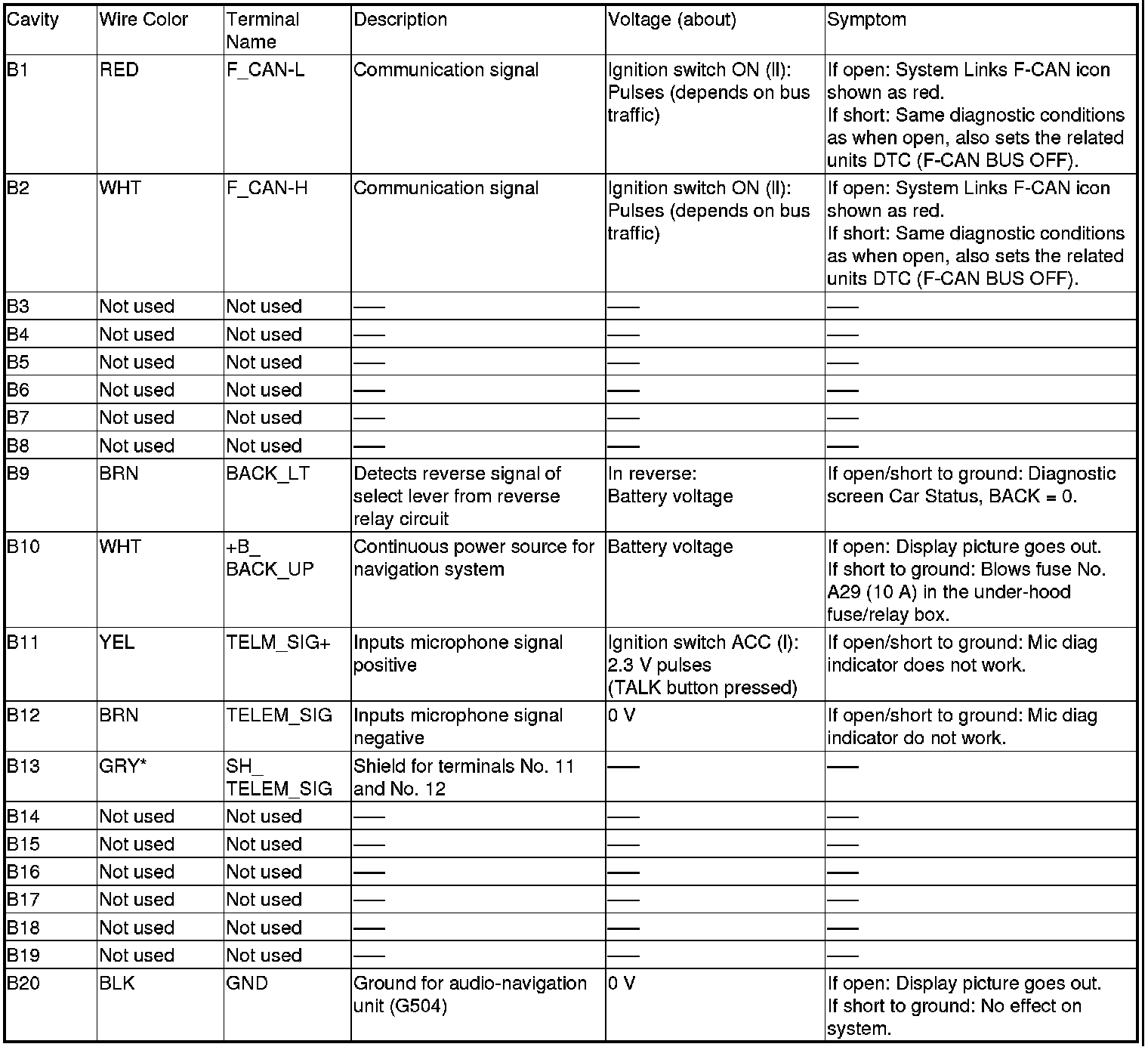

AUDIO-NAVIGATION UNIT CONNECTOR B (20P)

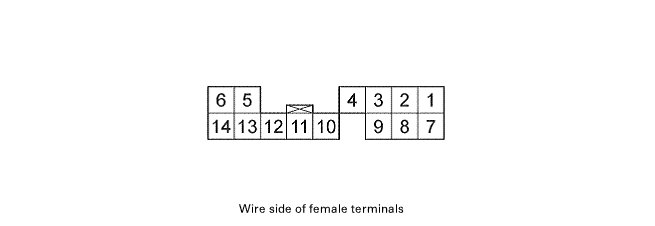

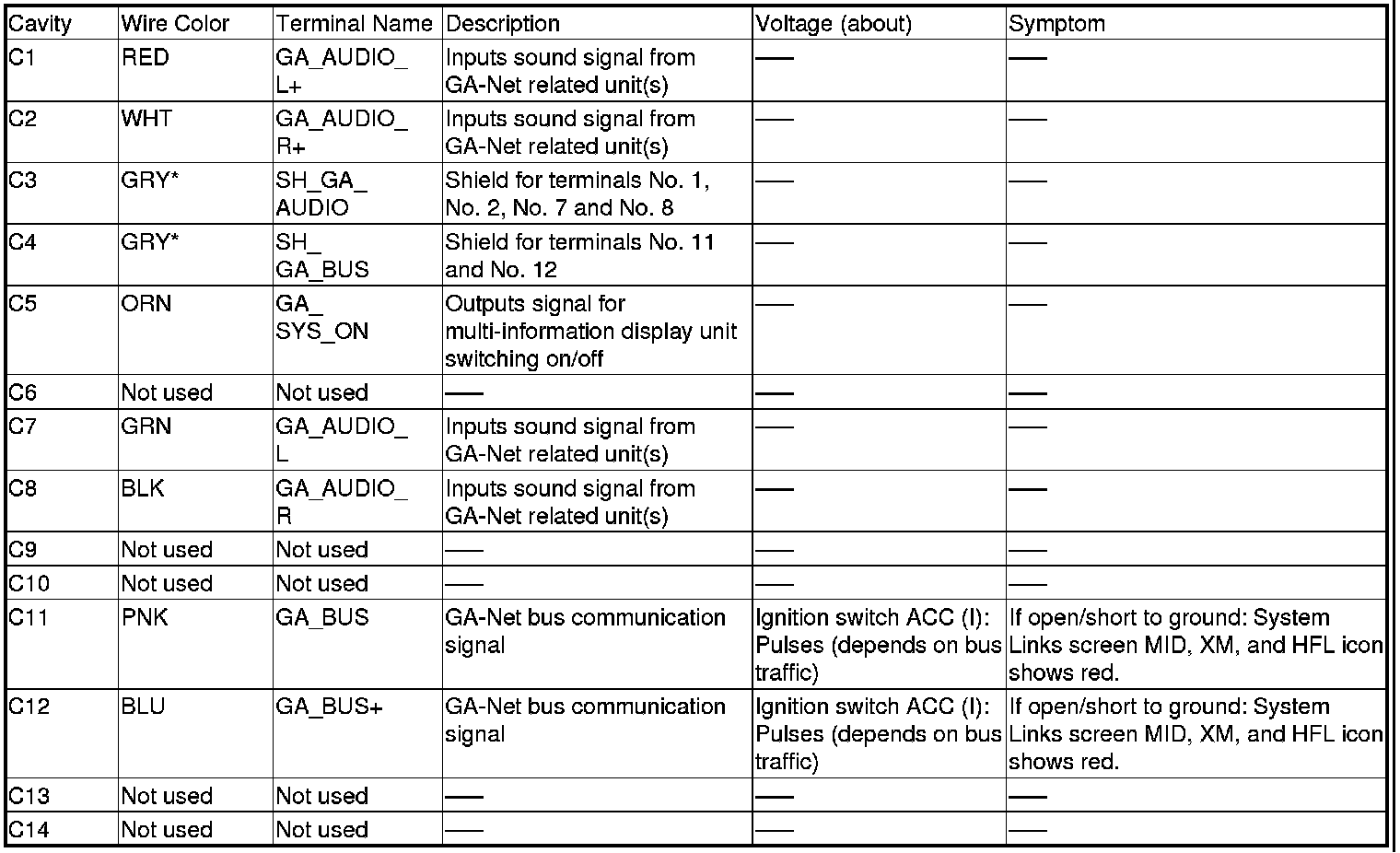

AUDIO-NAVIGATION UNIT CONNECTOR C (14P)

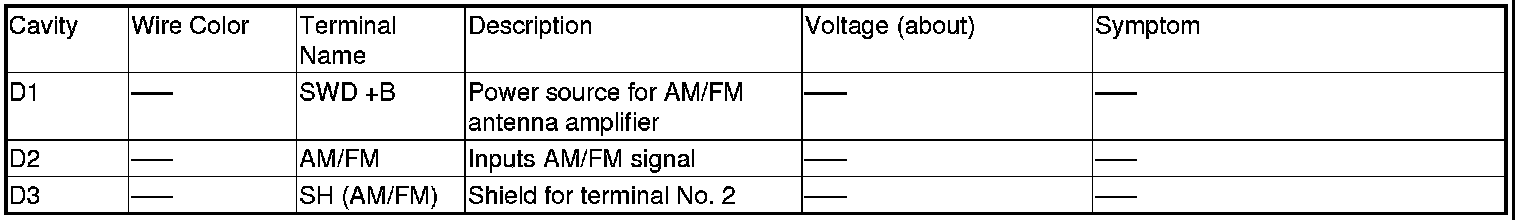

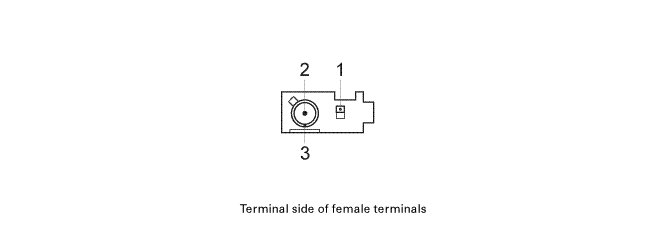

AUDIO-NAVIGATION UNIT CONNECTOR D (3P)

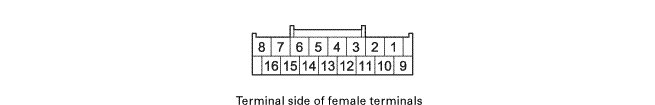

AUDIO-NAVIGATION UNIT CONNECTOR E (16P)

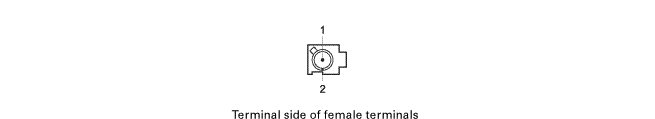

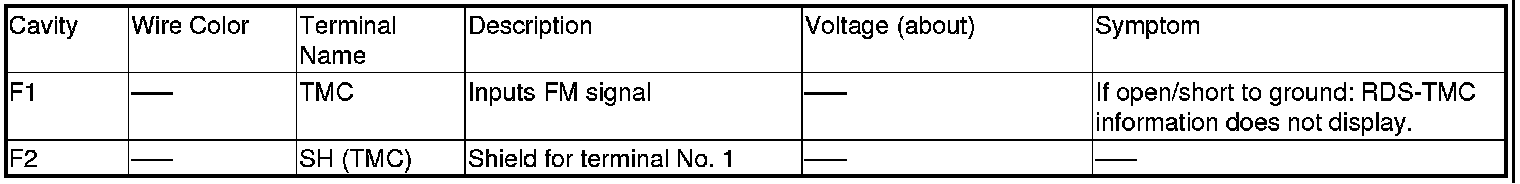

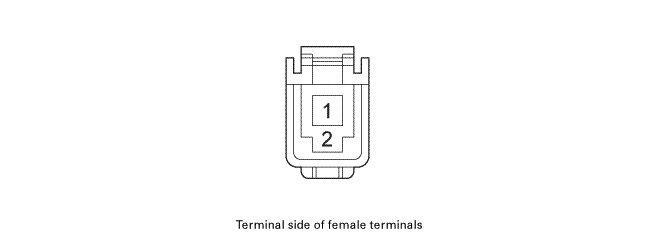

AUDIO-NAVIGATION UNIT CONNECTOR F (2P) (USA models)

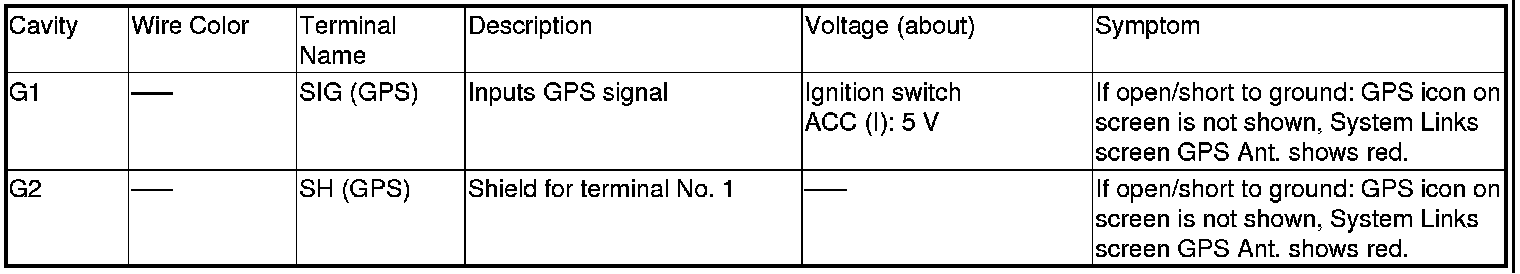

AUDIO-NAVIGATION UNIT CONNECTOR G (2P)

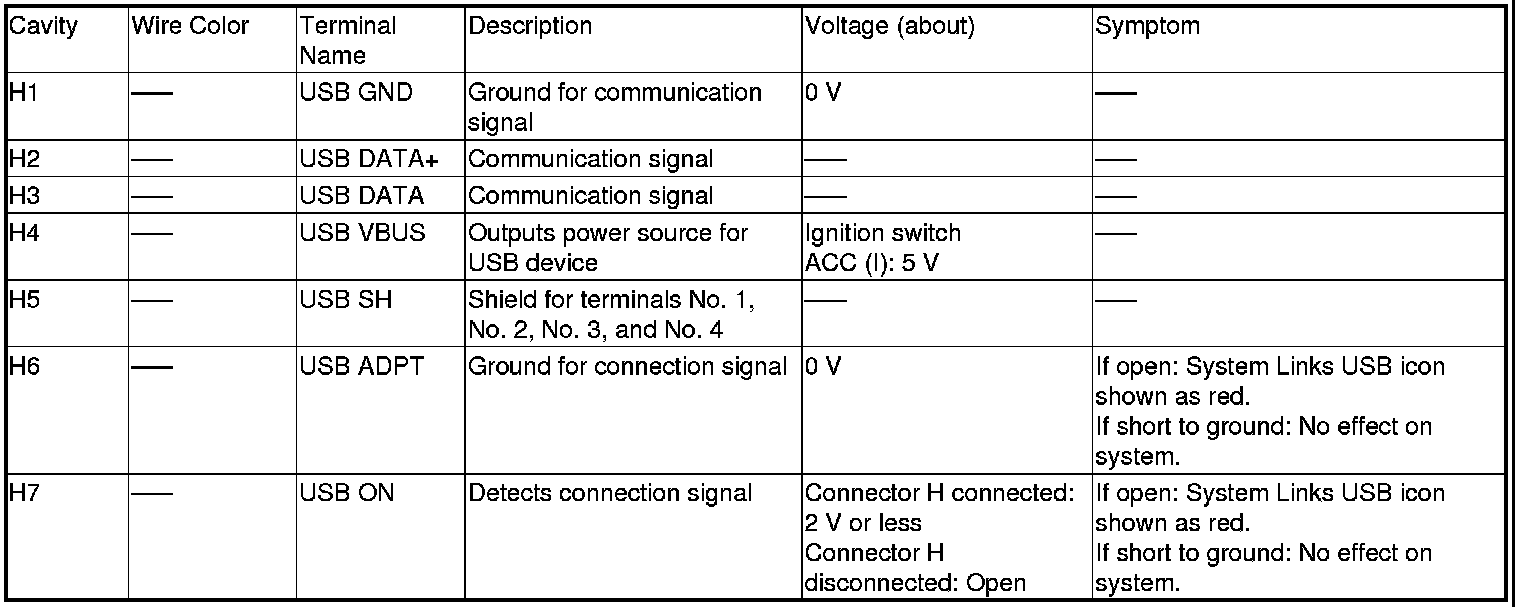

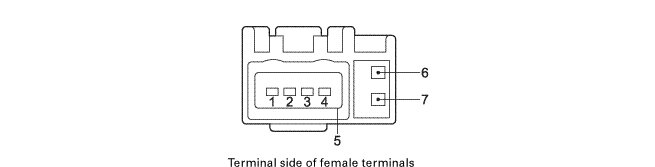

AUDIO-NAVIGATION UNIT CONNECTOR H (7P)
