Heater Control Panel Connector for Inputs and Outputs




HVAC

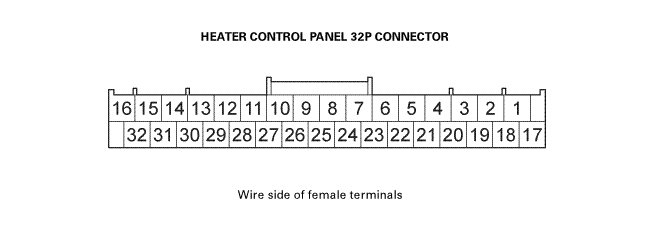

Heater Control Panel Connector for Inputs and Outputs

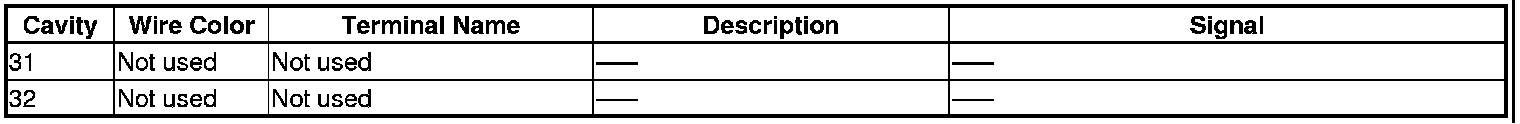

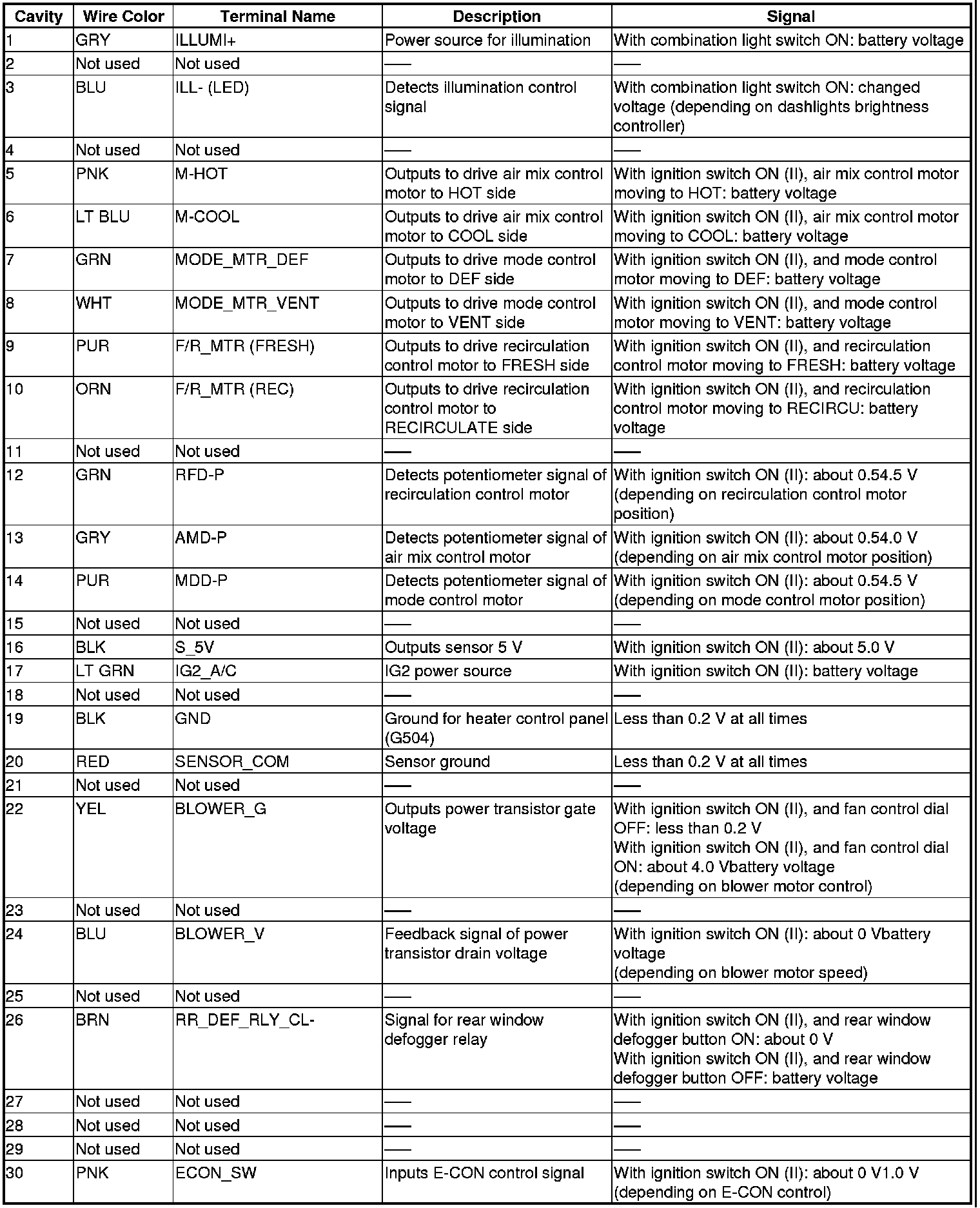

Heater Control Panel Inputs and Outputs
