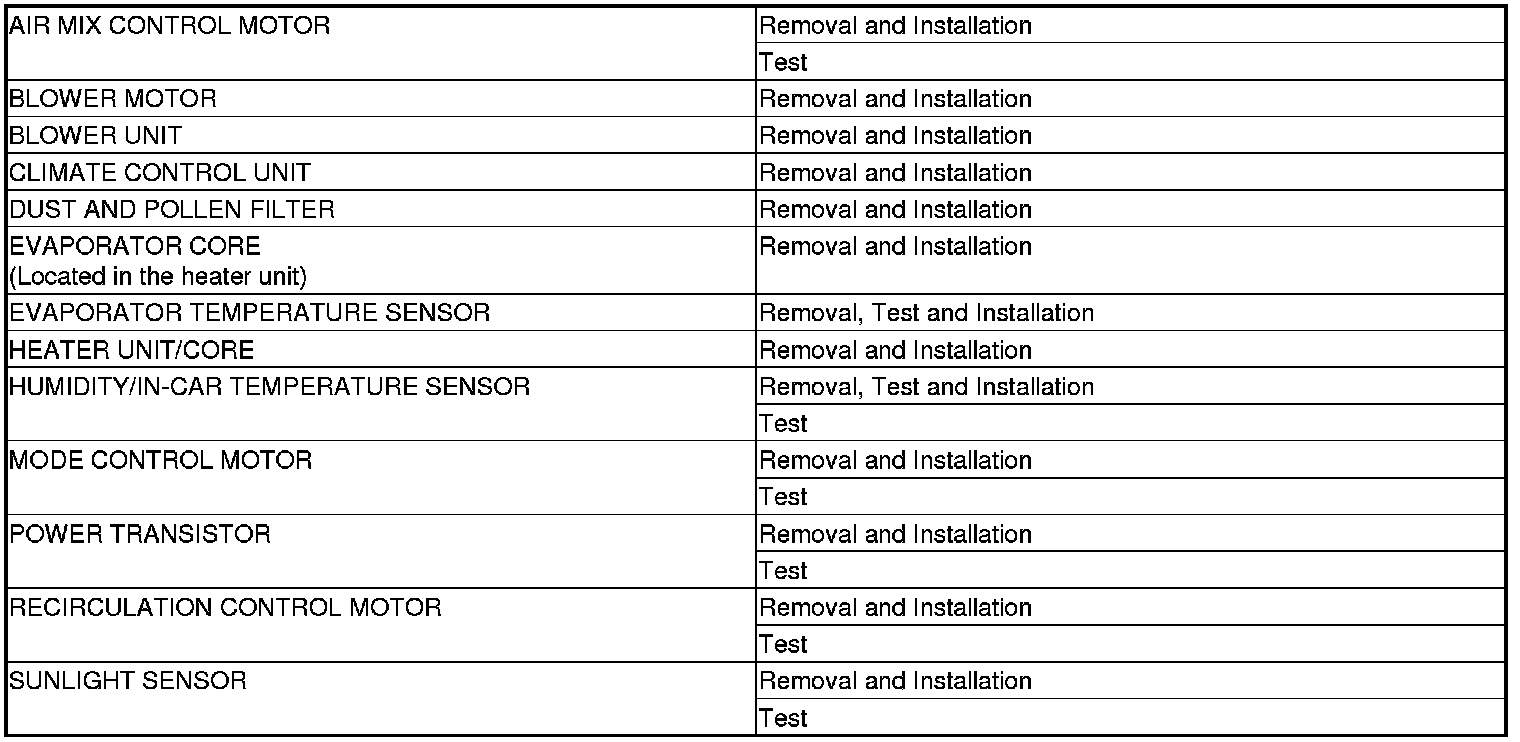

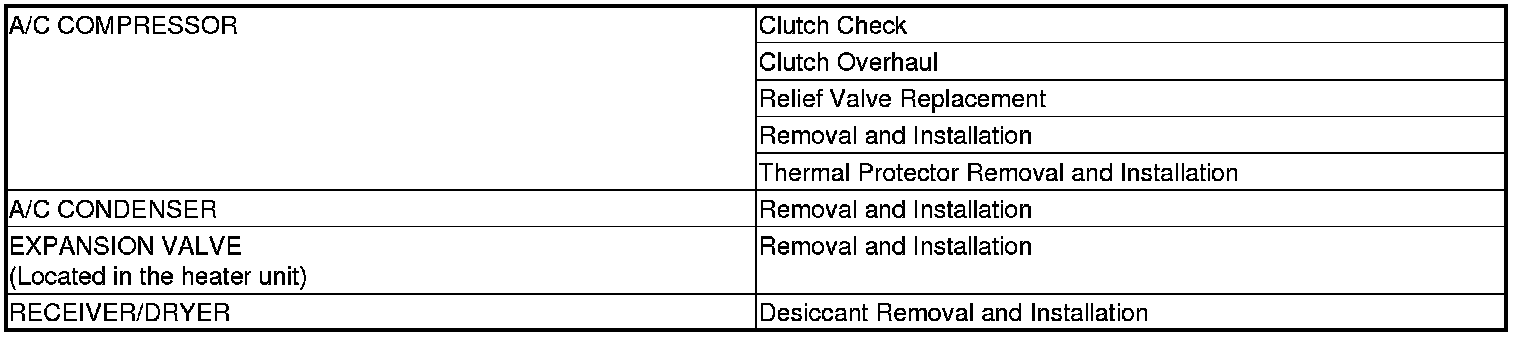

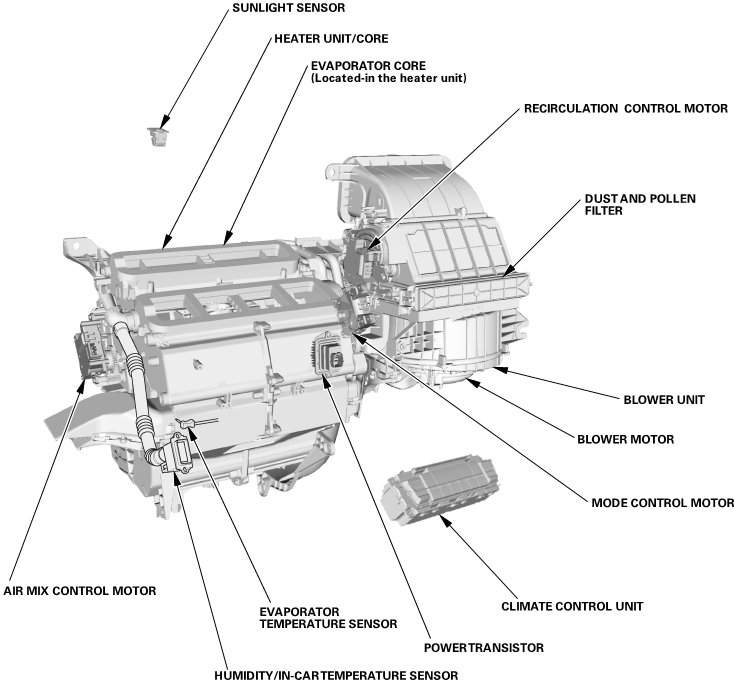

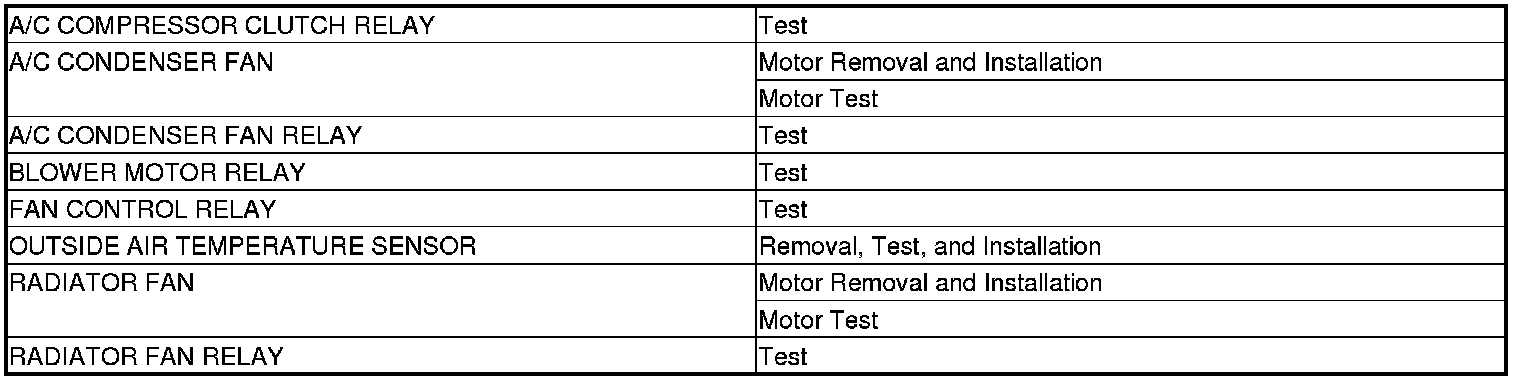

Climate Control System Component Location Index




HVAC

Climate Control System Component Location Index

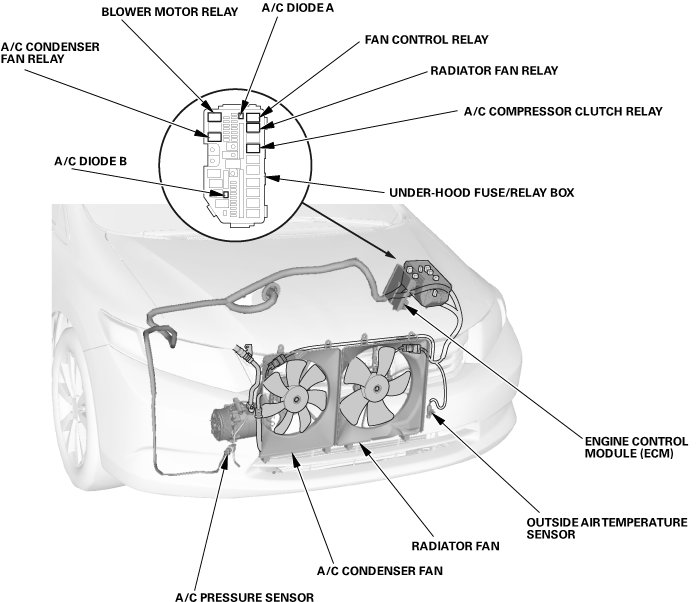

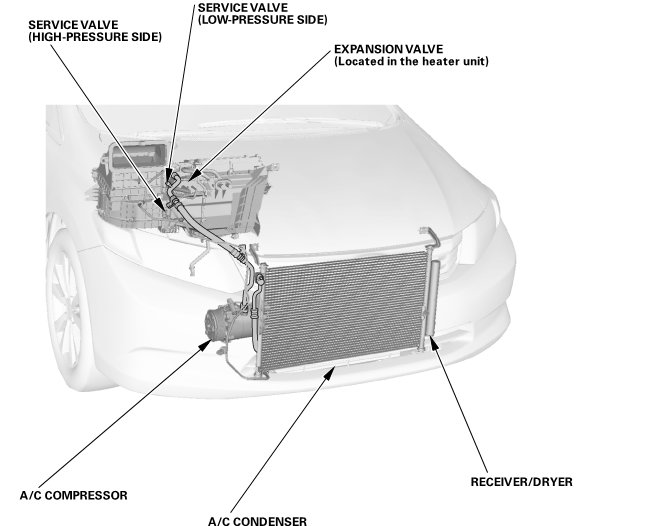

Except K24Z7 engine

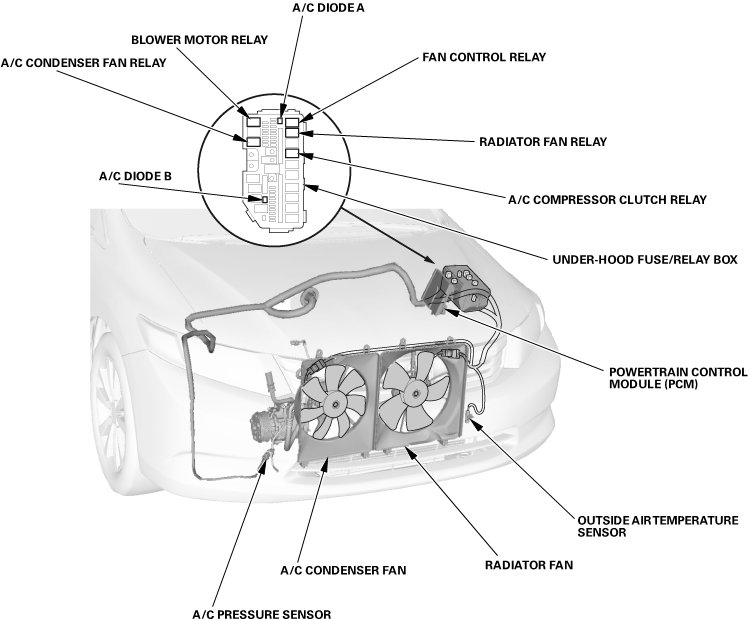

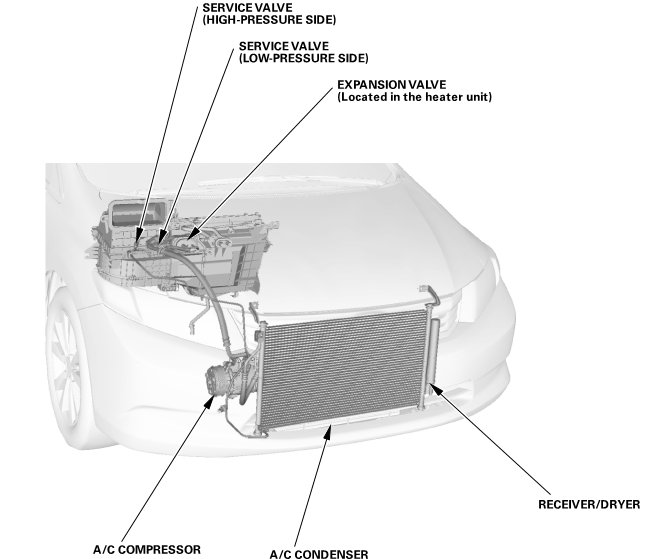

K24Z7 engine










Except K24Z7 engine










K24Z7 engine
