Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Removal and Installation

Removal

1. Vehicle Lift

1. Raise the vehicle on a lift, and make sure it is securely supported.

2. Left Floor Undercover

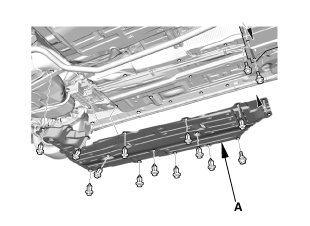

1. Remove the left floor undercover (A).

3. FTP Sensor





1. Disconnect the hose and the connector.

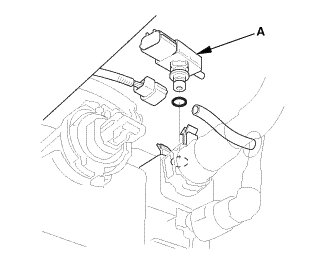

2. Remove the FTP sensor (A).

Installation

1. FTP Sensor

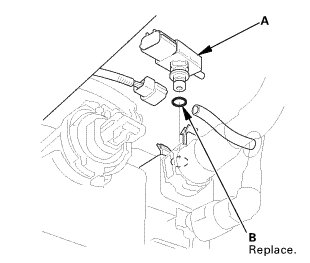

1. Install the FTP sensor (A) with a new O-ring (B).

2. Connect the hose and the connector.

2. Left Floor Undercover

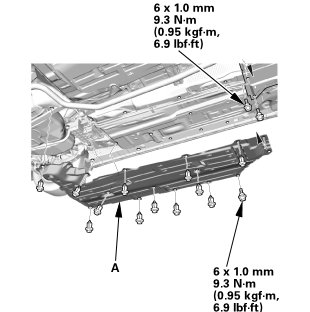

1. Install the left floor undercover (A).
