Variable Valve Timing Actuator Position Sensor: Service and Repair

Rocker Arm Oil Pressure Sensor (EOP Sensor) Removal and Installation

Removal

1. EOP Sensor

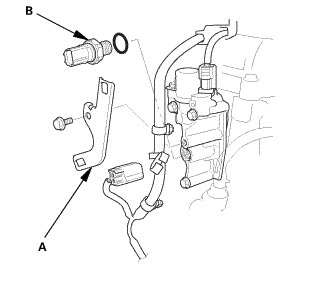

1. Remove the bracket (A) and the EOP sensor (B).

Installation

1. EOP Sensor

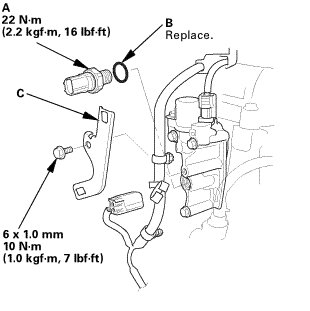

1. Install the EOP sensor (A) with a new O-ring (B) and the bracket (C).
