Procedures

Battery Terminal Disconnection and Reconnection

Removal

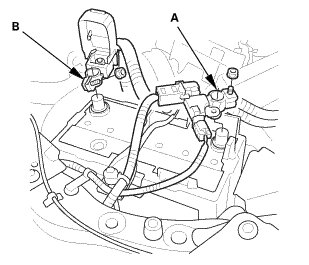

1. Battery Terminal - Disconnection





1. Make sure the ignition switch is in LOCK (0).

2. Disconnect and isolate the negative cable and battery sensor (A) from the battery.

NOTE: Always disconnect the negative side first.

3. Disconnect the positive cable (B) from the battery.

Installation

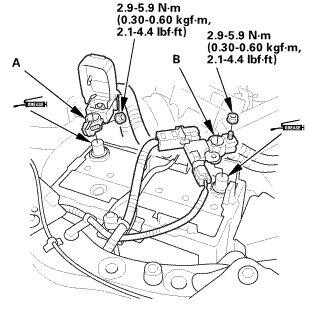

1. Battery Terminal - Reconnection





NOTE: If the battery performs abnormally, test the battery.

1. Clean the battery terminals.

2. Connect the positive cable (A) to the battery.

NOTE: Always connect the positive side first.

3. Connect the negative cable and battery sensor (B) to the battery.

4. Apply multipurpose grease to the terminals to prevent corrosion.
