Ignition Key Switch Test

Ignition Key Switch Test

Removal

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Upper Column Cover

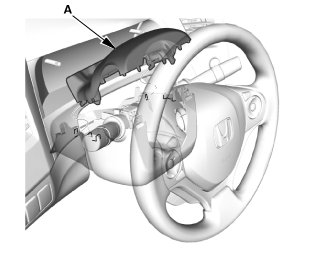

1. Remove the upper column cover (A).

2. Lower Column Cover





1. Remove the screws (A).

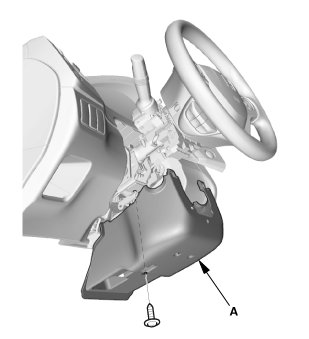

2. Remove the lower column cover (A).

Test

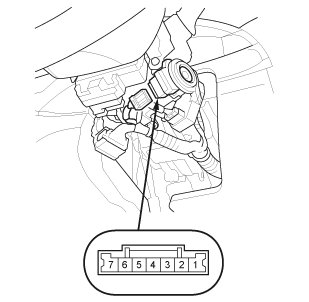

1. Ignition Key Switch - Test









1. Disconnect the connector.

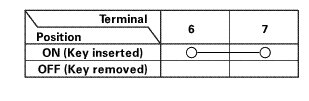

2. If the continuity is not as specified, replace the steering lock assembly.

3. Connect the connector.

Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

1. Lower Column Cover





1. Install the lower column cover (A).





2. Install the screws (A).

2. Upper Column Cover





1. Install the upper column cover (A).
