Fuel Pipe Protector Replacement

Fuel Pipe Protector Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the left rear wheel.

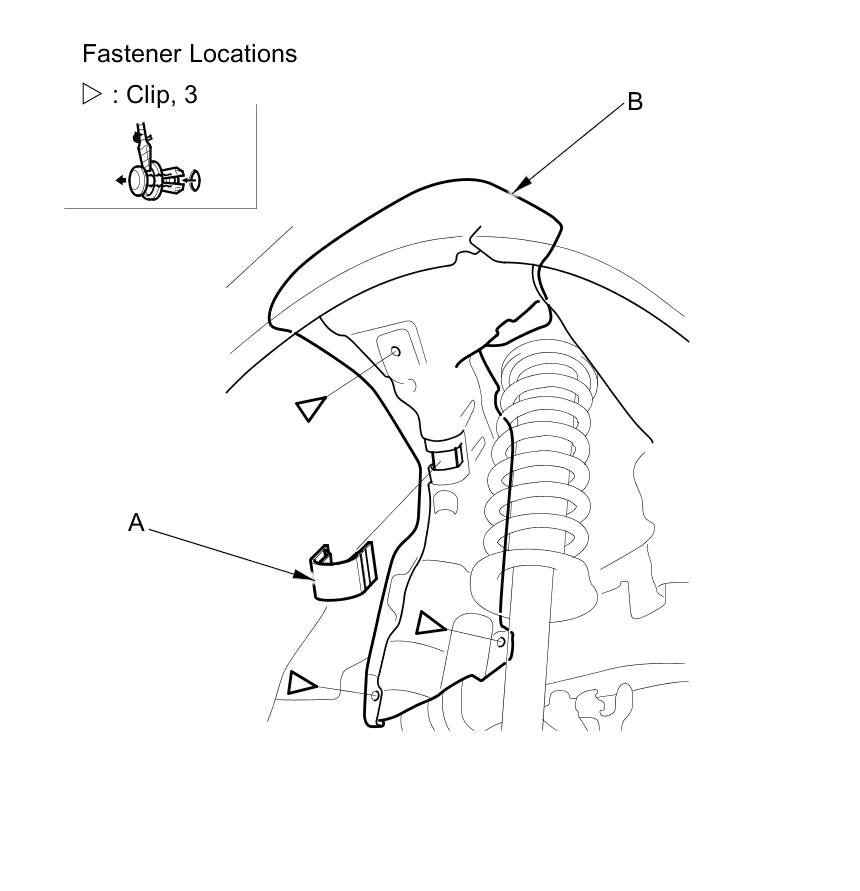

2. Remove the fuel pipe protector clip (A). Detach the clips, then remove the fuel pipe protector (B).






3. Install the protector in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.

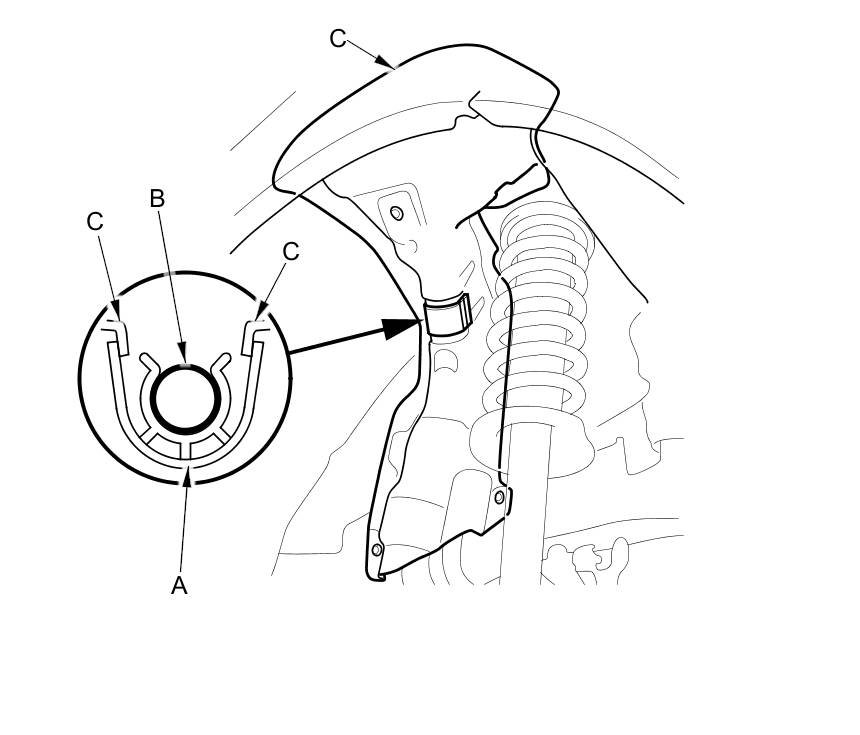

- Make sure the fuel pipe protector clip (A) is set to the fuel pipe (B) securely.
- Make sure the fuel pipe protector (C) is inserted securely into the fuel pipe protector clip.
- Push the clips into place securely.
