Monitor Check: Radio

This diagnosis displays the internal radio tuner and the CD player status.

If Connection shows NG, replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION  ).

• Electric Field Intensity: Displays radio reception sensitivity (dBuV).
• CD Mech. Version: Displays the version of the internal CD player.

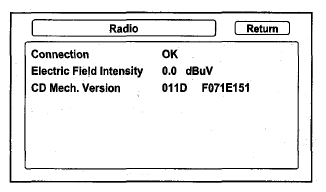

  Fig 1: Screen Display - Radio

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
