Start-up Procedure and Diagnostic Menu

NOTE: Check the vehicle battery condition first (see BATTERY TEST ).

Start the engine.
At the disclaimer screen use the audio-navigation unit hard buttons:
Press and hold the MAP/GUIDE, the DEST, and the CANCEL buttons for 3 seconds. The display screen goes directly to the Select Diagnosis Items menu shown.
- Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
- Detail Information & Setting (allows you to manually diagnose the navigation system)

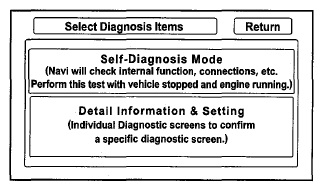

  Fig 1: Screen Display - Select Diagnosis Items
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
