System Diagnostic Mode: USB

This diagnosis displays directly from the System Links screen by selecting the USB icon.

This diagnosis checks the connection of the USB harness.

If Connection shows NG, check for open in the wire between audio-navigation unit connector E (7P) terminals No. 6 (USB DET) and No. 7 (DET GND).

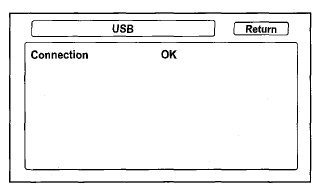

Fig 1: Screen Display - USB
