Front Seat Slide Lever Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to scratch the body or tear the seat covers.
  1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION  ).
  2. Slide the front seat all the way back on the seat tracks.
  3. From under the seat cushion, lightly tap the slide lever (A) out to disconnect both ends of it from the springs (B) of the slide locks (C) in both seat tracks (D).

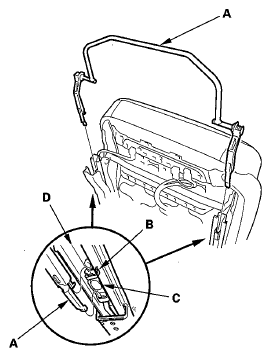

    Fig 1: Identifying Lever, Springs, Slide Locks & Seat Tracks
    G05959602Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the lever in the reverse order of removal.
