Rear Seat Leg Guide Replacement

Push the leg guide cover (A) to release the hook (B), then pull out the cover from the attaching plate (C) and the holder (D) of the leg guide (E).

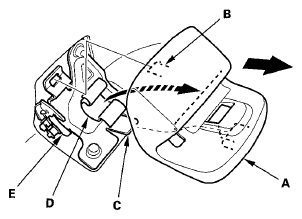

Fig 1: View Of Leg Guide Cover, Hook, Attaching Plate, Holder & Leg Guide
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the nut and bolt, then remove the leg guide (A).

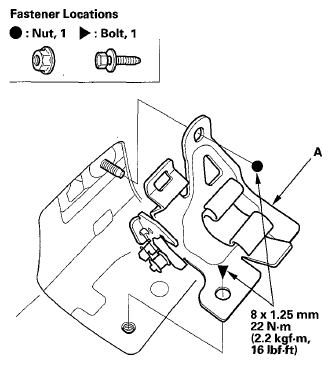

Fig 2: Leg Guide Nut & Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the leg guide in the reverse order of removal.
