Exhaust Pipe and Muffler Replacement

NOTE: Use new gaskets and self-locking nuts when reassembling.

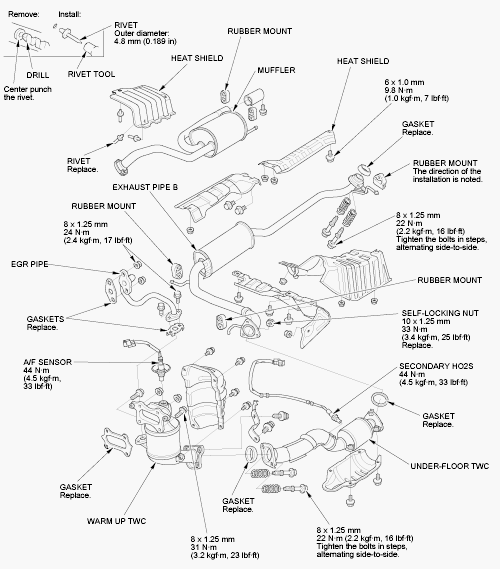

Fig 1: Exploded View Of Exhaust Pipe & Muffler With Torque Specifications
G05952707Courtesy of AMERICAN HONDA MOTOR CO., INC.
