System Diagram

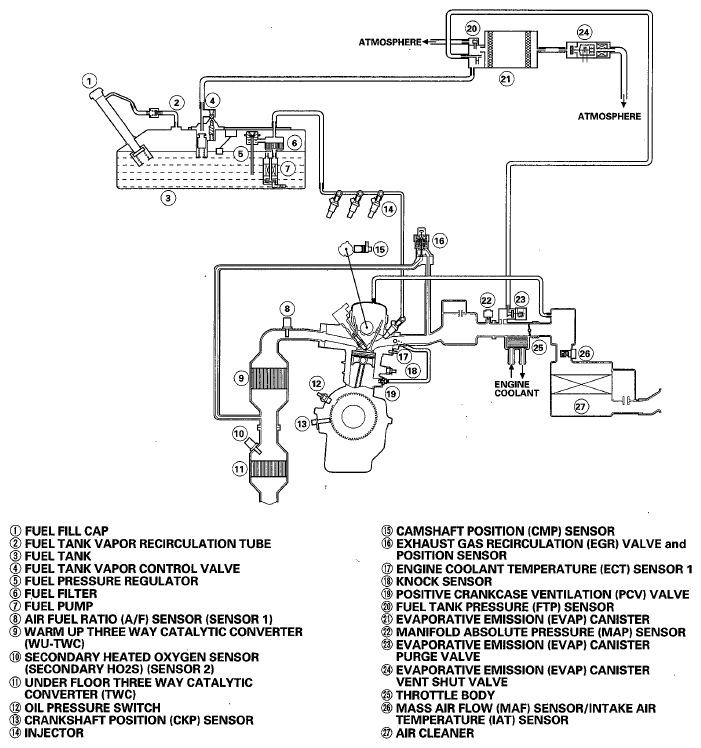

Fig 1: Identifying Fuel & Emissions Systems Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
