Component Location Index

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

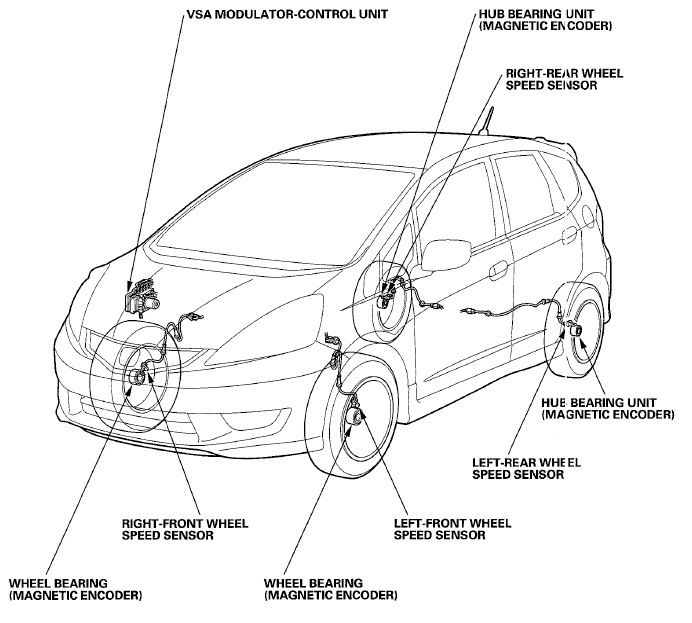

Fig 1: Identifying VSA Replacement Components (1 Of 2)
G05959265Courtesy of AMERICAN HONDA MOTOR CO., INC.

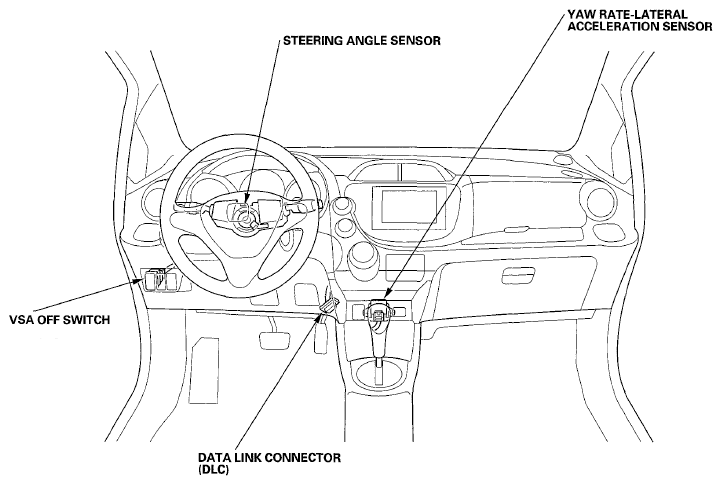

Fig 2: Identifying VSA Replacement Components (2 Of 2)
G05959266Courtesy of AMERICAN HONDA MOTOR CO., INC.
