GPS Antenna Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).
Remove the screws (A) from the GPS antenna (B).

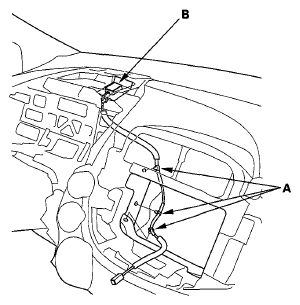

Fig 1: Identifying GPS Antenna & Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the wire harness clips (A), screws, and GPS antenna (B).

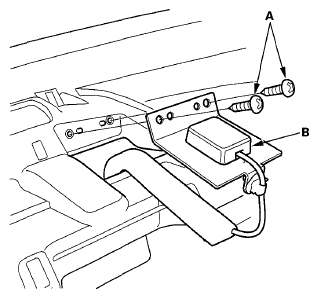

Fig 2: Identifying Wire Harness Clips & GPS Antenna
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the GPS antenna in the reverse order of removal.
