With navigation

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center lower trim (A) (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).

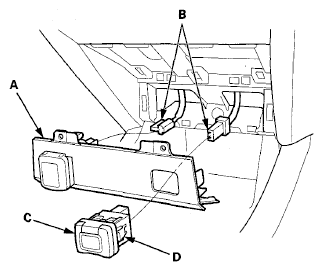

    Fig 1: Removing Center Lower Trim
    G06768865Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the connectors (B) from the auxiliary jack (C) and the accessory socket.
  3. Push out the auxiliary jack (C) from the center lower trim, while pressing lock tabs (D).
  4. Install the auxiliary jack in the reverse order of removal.
