USB adapter

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

The audio system supports the external compressed audio files input using a USB adapter. The audio unit is supporting GA-Net address and commands for the USB adapter unit. While connecting the USB audio device to the USB adapter, the audio unit can control the USB audio device. Also, the audio unit can provide power to the USB audio device through the USB. Connect the USB audio device using the USB adapter cable located in the glove box (see owner's manual).

NOTE: Not all players and player functions work with the USB adapter. See the owner's manual for more information.

*: With navigation

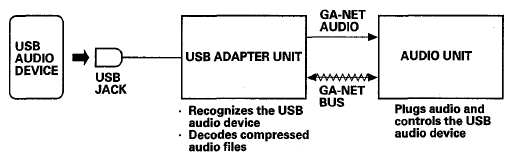

Fig 1: System Description - USB Adapter
G06768784Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: All items may not apply to this vehicle. See the owner's manual for more information.
