Component Location Index

WARNING: This page is about a different variant/trim than selected.

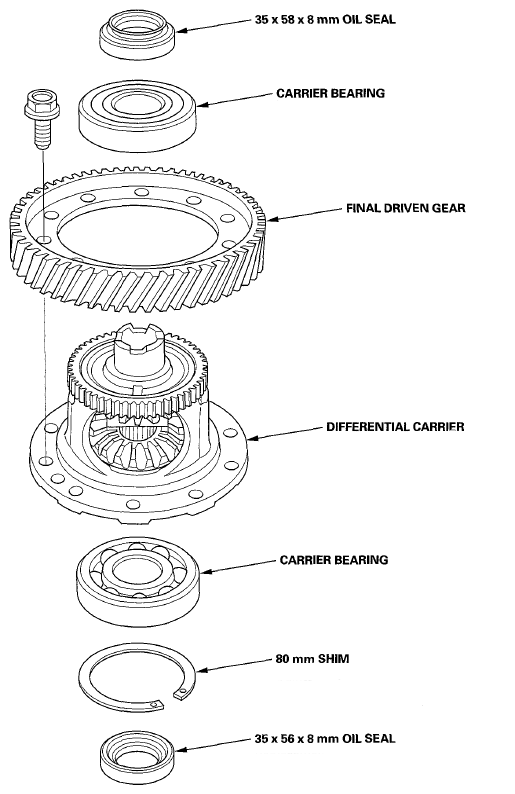

Fig 1: Identifying M/T Differential Replacement Components
G05953488Courtesy of AMERICAN HONDA MOTOR CO., INC.
