Exploded View

WARNING: This page is about a different variant/trim than selected.

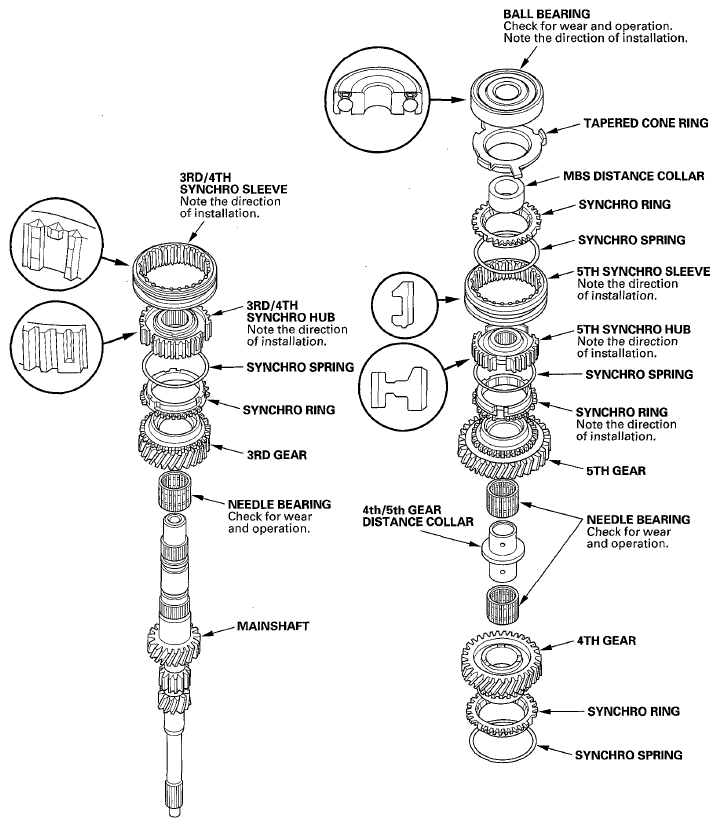

Fig 1: Identifying Mainshaft Reassembly Replacement Components
G05953410Courtesy of AMERICAN HONDA MOTOR CO., INC.
