Speaker Test/Replacement: Tweeter

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Insert a flat-tip screwdriver in the groove (A), and carefully pry the tweeter grille (B).
NOTE: Be careful not to damage the tweeter grille and the dashboard.

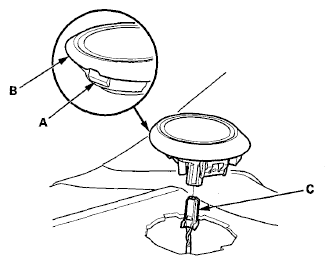

Fig 1: Inserting Flat-Tip Screwdriver In Groove
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (C) from the tweeter.
Check the capacitor condition. If any malfunction is found, replace the tweeter.
Remove the tweeter speaker (A) from the speaker grille (B).

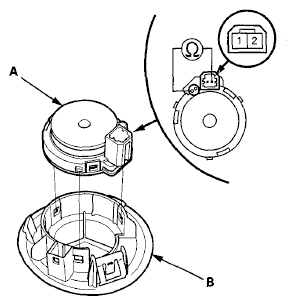

Fig 2: Removing Tweeter Speaker From Speaker Grille
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the resistance between the soldered joint and terminal No. 2. There should be about 4 fi.
If the resistance is not as specified, replace the tweeter speaker.
Install the tweeter speaker in the reverse order of removal.

NOTE: Align the tweeter speaker connector with the cut-out on the speaker grille.
