Alarm Module: Service and Repair

Immobilizer-Keyless Control Unit Replacement

NOTE: SRS components are located in the area. Review the SRS component locations Locations, and precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the steering column covers Service and Repair.

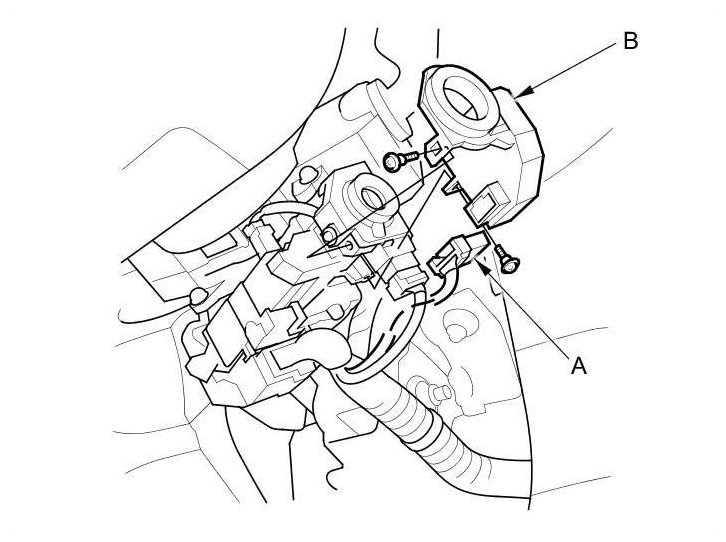

2. Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).





3. Remove the two screws and the immobilizer-keyless control unit.

4. Install the immobilizer-keyless control unit in the reverse order of removal.

5. After replacement, register the immobilizer-keyless control unit (all of the customer's keys are required) Testing and Inspection, and make sure the immobilizer system works properly.
