Middle Front Floor Crossmember Replacement




Middle Front Floor Crossmember Replacement

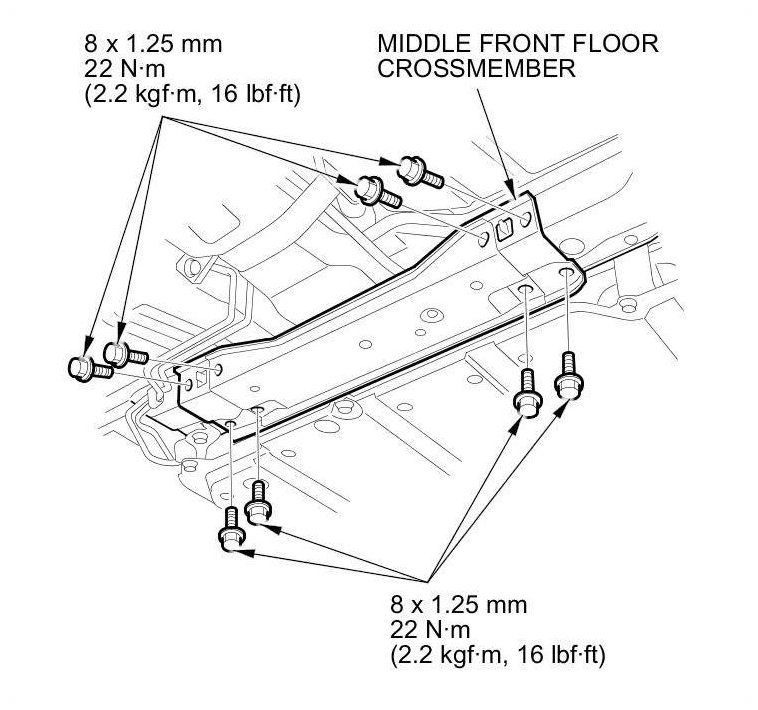

Middle Front Floor Crossmember Torque

NOTE: Take care not to scratch the body.
