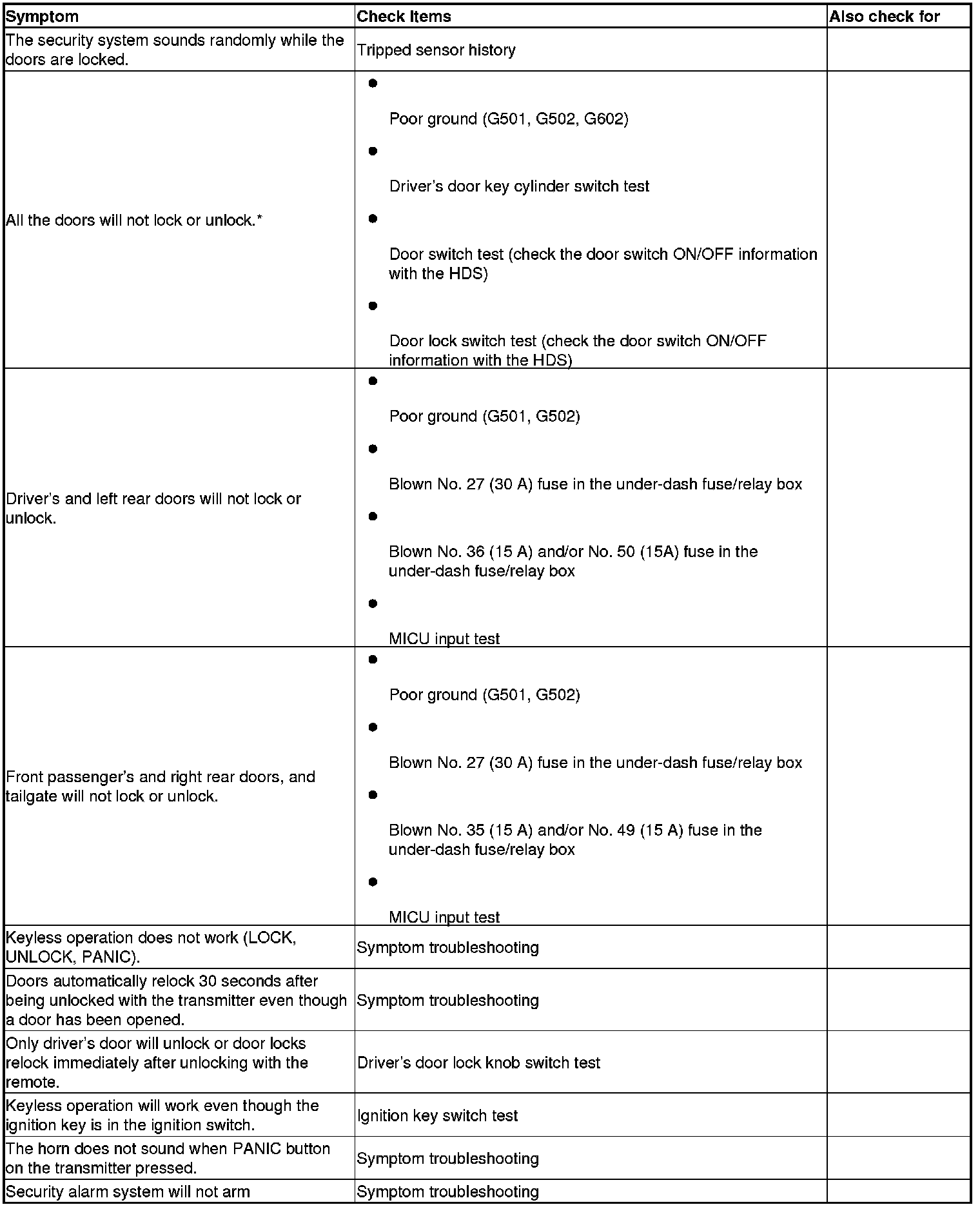

Keyless/Power Door Locks/Security System Symptom Troubleshooting Index

Keyless/Power Door Locks/Security System Symptom Troubleshooting Index

Power Door Locks/Keyless

1. Check for B-CAN DTCs. If any B-CAN DTCs are indicated, refer to the B-CAN system diagnosis troubleshooting Reading and Clearing Diagnostic Trouble Codes, and troubleshoot the indicated DTC(s) first.

2. If the door lock system and the keyless operation do not work, troubleshoot the door locks first.

NOTE: The system does not function when the ignition switch is ON (II).
