Radiator Hose: Service and Repair

Radiator Connecting Pipe Replacement

1. Drain the engine coolant Service and Repair.

2. Remove the thermostat housing.

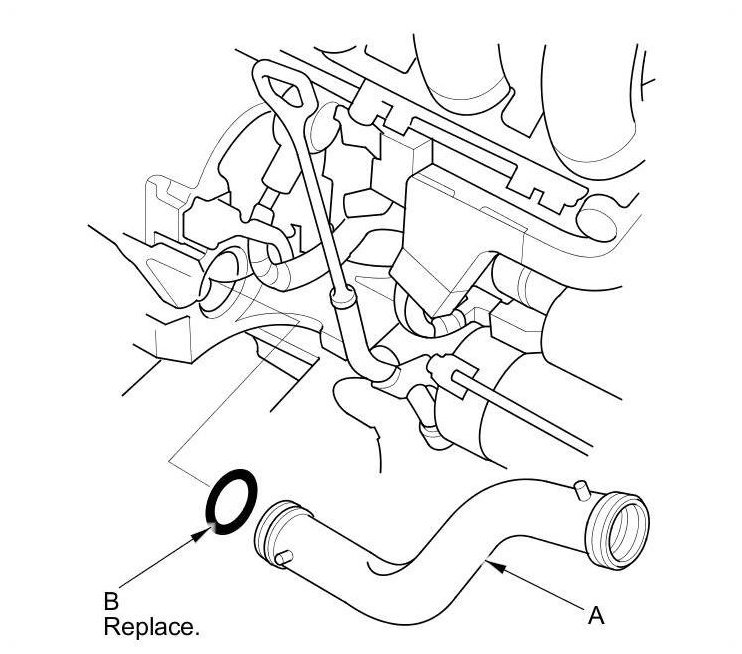

3. Remove the connecting pipe (A).





4. Install the connecting pipe with a new O-ring (B).

5. Install the thermostat housing.

6. Refill the radiator with engine coolant, and bleed the air from the cooling system.

7. Clean up any spilled engine coolant.
