Fuse To Components Index

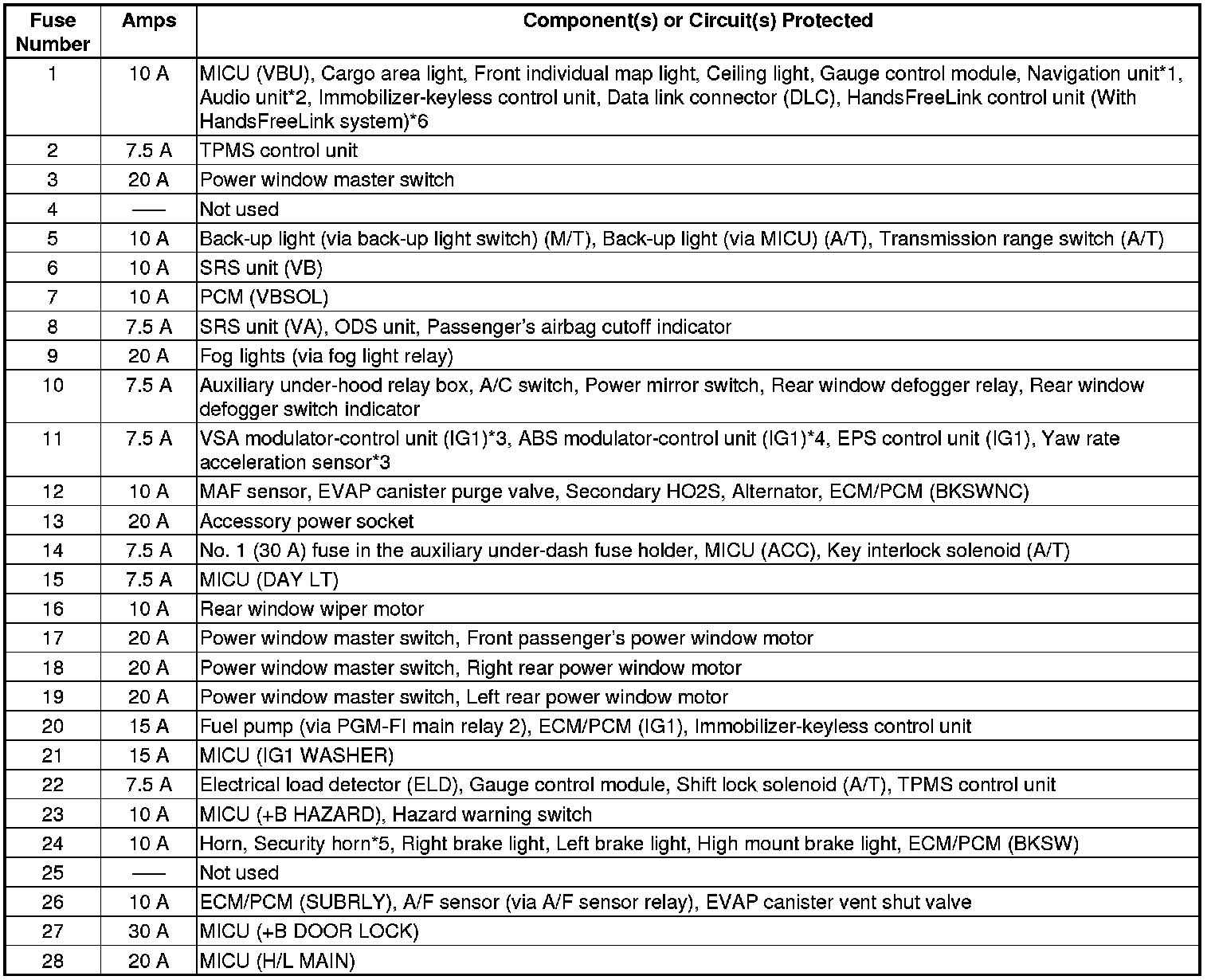

Fuse to Components Index

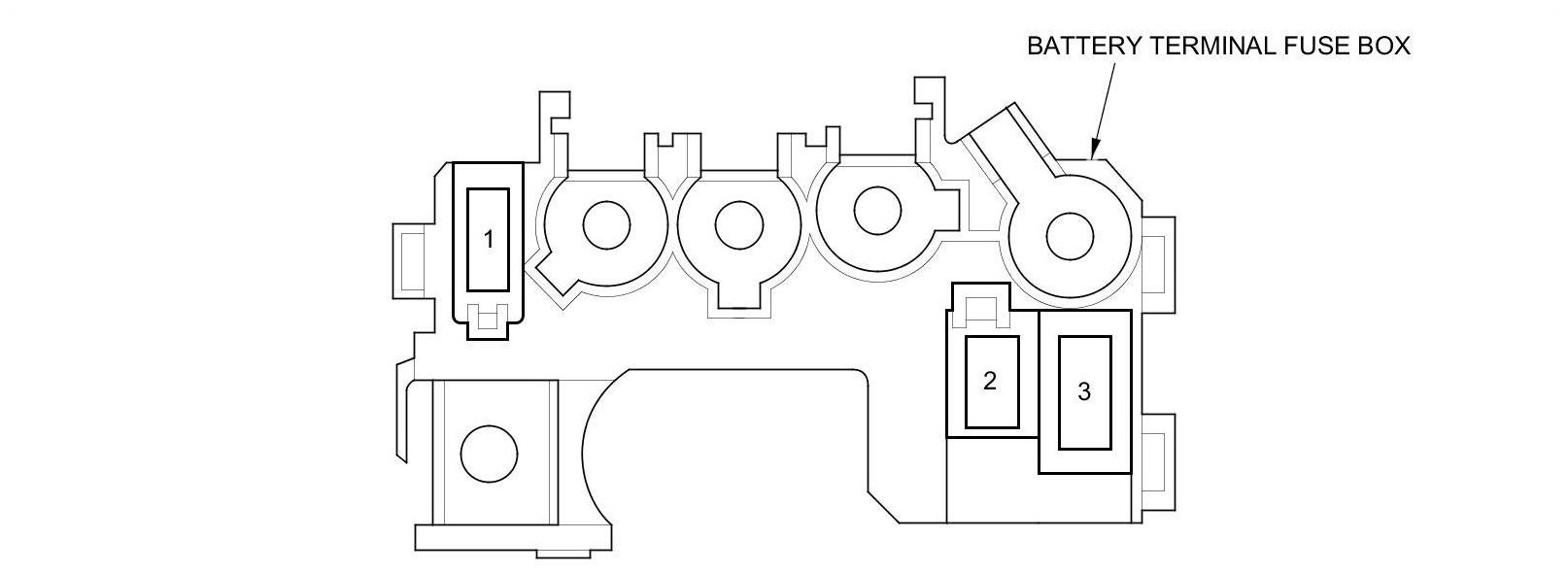

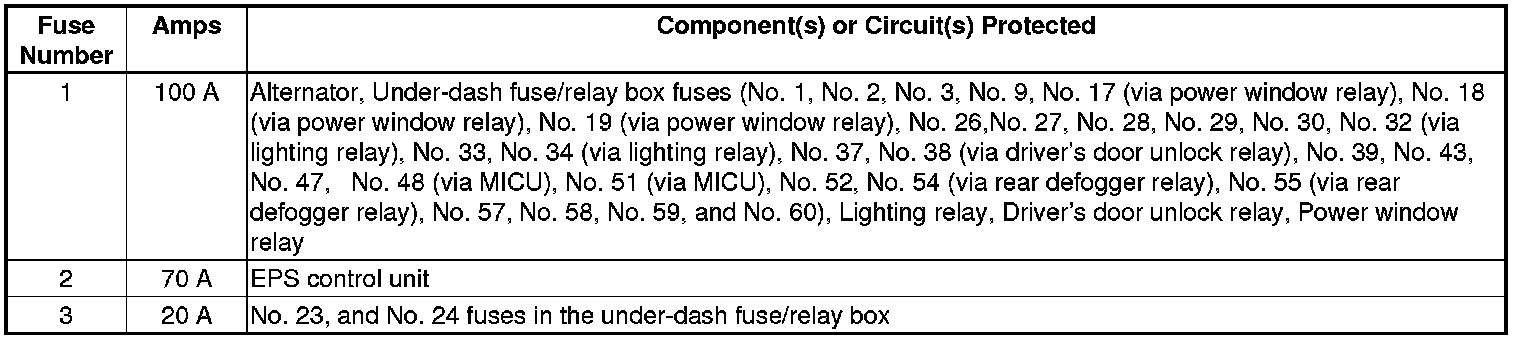

Battery Terminal Fuse Box

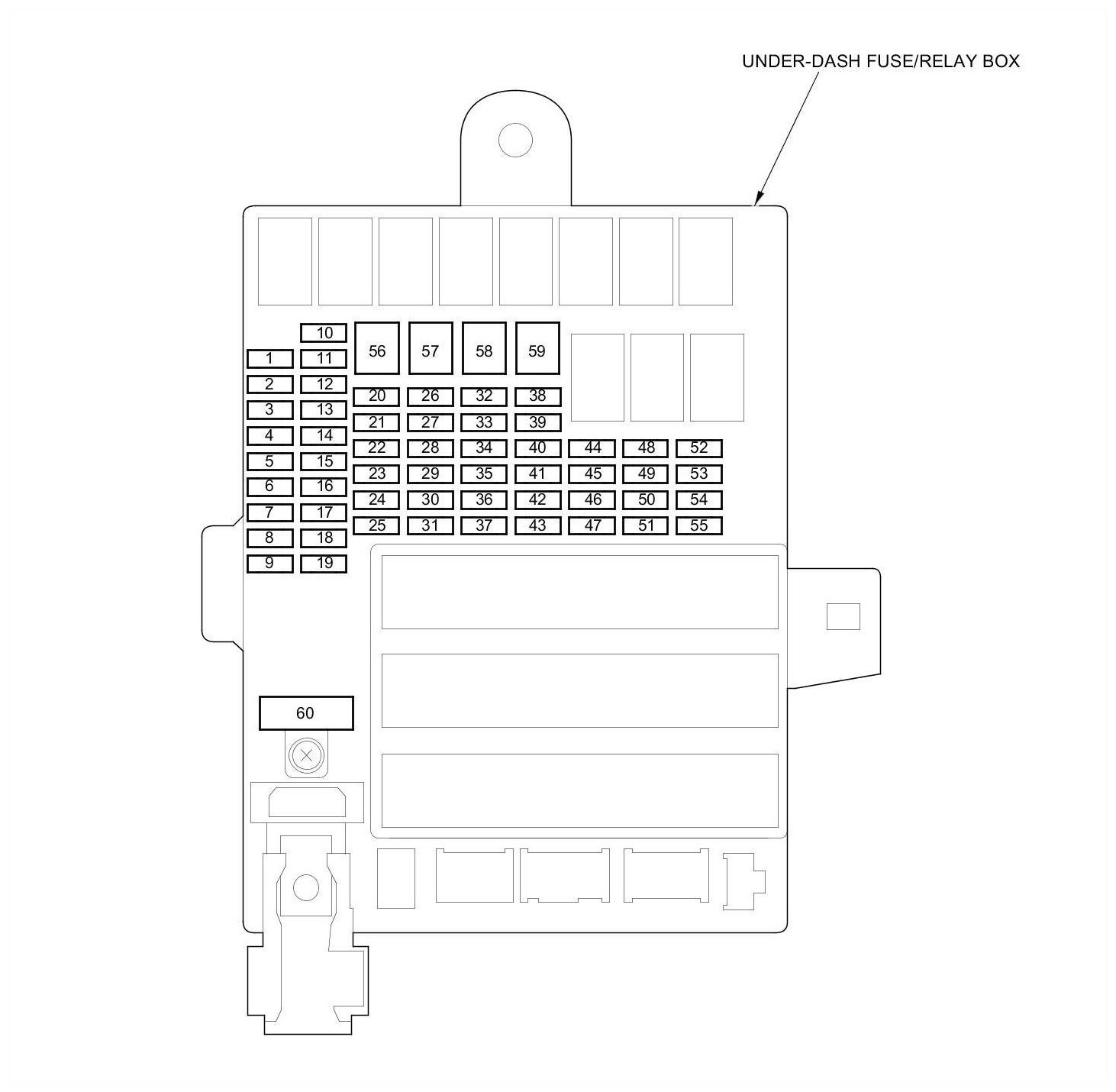

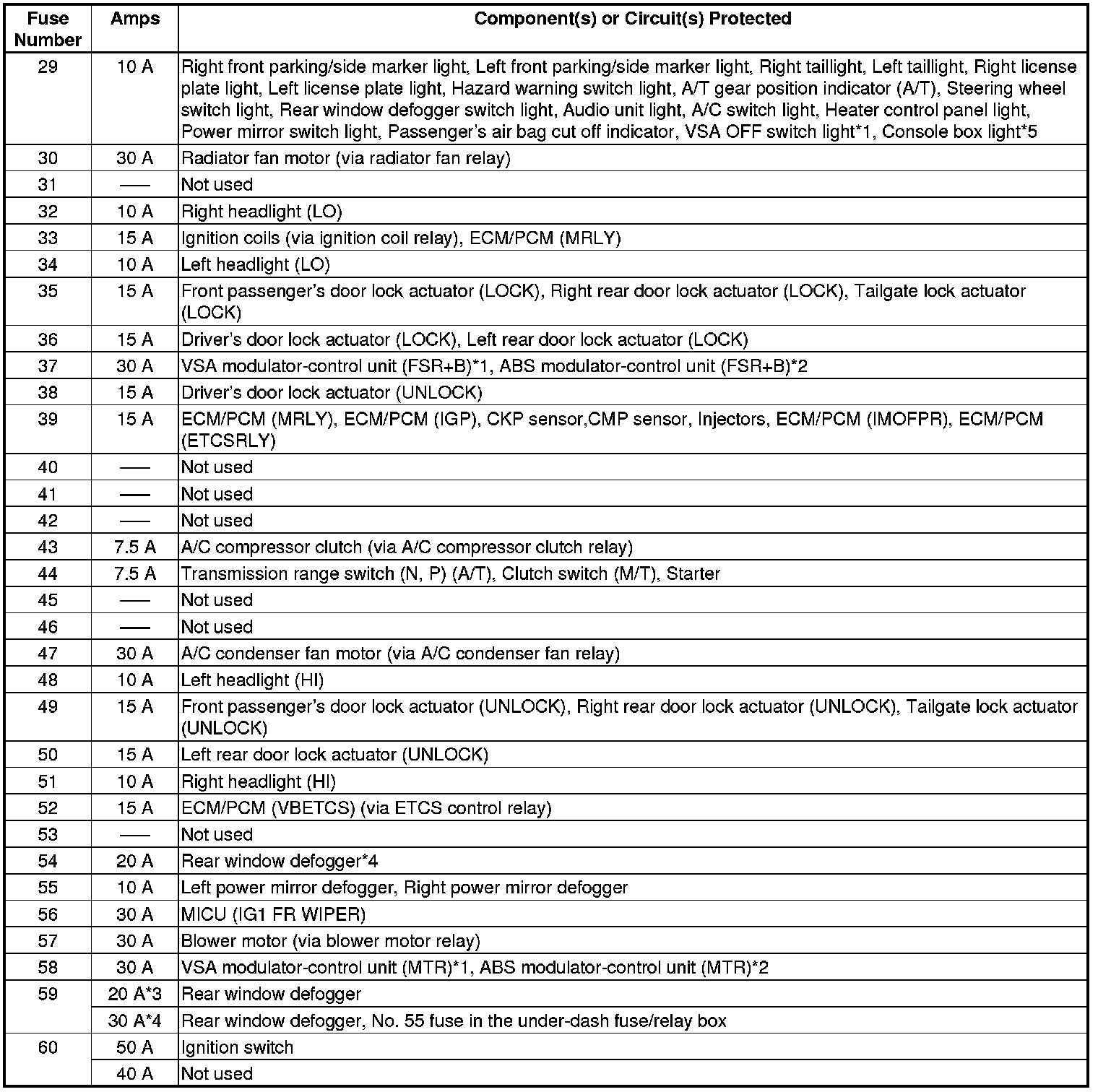

Under-dash Fuse/Relay Box

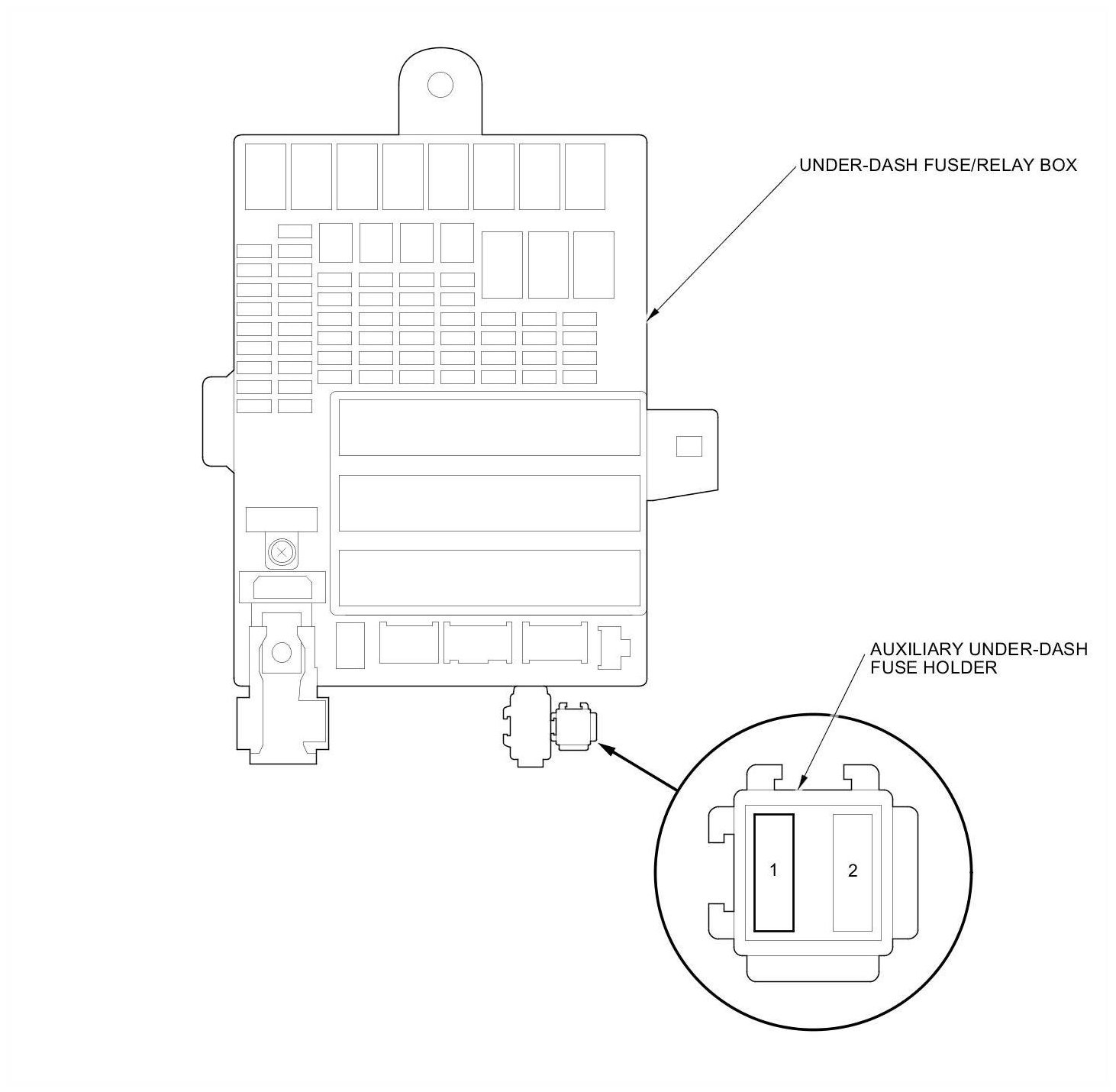

Auxiliary Under-dash Fuse Holder
