Audio Remote Switch Test

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS article before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Disconnect the cable reel subharness 20P connector (A).

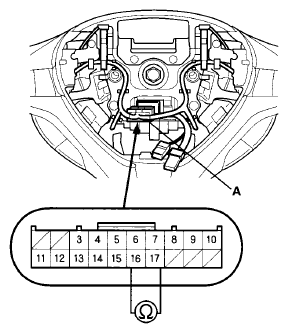

   Fig 1: Measuring Resistance Between Terminals No. 16 And No. 17 In Each Switch Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Measure the resistance between the terminals No. 16 and No. 17 in each switch position according to the table.

   Position	Resistance
   No button pressed	About 10kΩ
   MODE	About 3.7 kΩ
   CH (+)	About 1.7 kΩ
   CH (-)	About 775 Ω
   ↑ (VOL.UP)	About 357 Ω
   ↓ (VOL.DOWN)	About 1000

4. If the resistance is not as specified, replace the audio remote switch (see AUDIO REMOTE SWITCH TEST ).
