Speaker Check Mode
NOTE:
- There may be other self-diagnostic functions that are for factory use only.
- If no sound is heard from speakers, go to NO SOUND IS HEARD FROM THE SPEAKER(S) .
- Turn the ignition switch to ON (II).
- Make sure the audio unit is turned off.

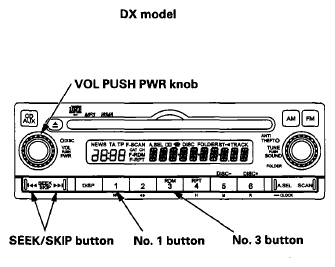

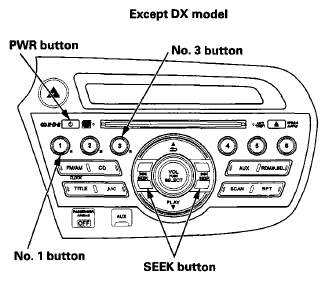

- Press and hold the preset No. 1 and No. 3 buttons.
- While holding the buttons, press the PWR button (Except DX model) or VOL PUSH PWR knob (DX model) to ON.
- Release the buttons and the speaker check mode begins. A tone should sound from one speaker as indicated on the display.
- Each time you press the SEEK button (l<< >>l)
(Except DX model) or SEEK/SKIP button (l<< >>l)
(DX model), the test moves to the next speaker in the order listed in the table.NOTE: Adjust the volume level to a comfortable level.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Display Specifications
(l<< >>l) is pressed: (1)→(2)→(3)→(4)→(5)
(l<< >>l) is pressed: (1)→(5)→(4)→(3)→(2)
Speaker Displayed Segments Displayed Segments (1) Driver's door speaker and left tweeter(1) SPKR FR-L You should hear a tone corresponding to the speaker (2) Front passenger's door speaker and right tweeter(1) SPKR FR-R You should hear a tone corresponding to the speaker (3) Right rear door speaker SPKR RR-R You should hear a tone corresponding to the speaker (4) Left rear door speaker SPKR RR-L You should hear a tone corresponding to the speaker (5) All speakers SPKR ALL You should hear a tone corresponding to the speaker (1) With tweeter NOTE: Any other diagnostic screens are for factory use only. - The speaker check mode ends when you turn the audio unit off, or turn the ignition switch to LOCK (0).
