FM Distributor Removal/Installation

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS article before doing repairs or service.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
Do not work in a dusty or dirty place.
Discharge static electricity from your body before and during the work.
Do not touch the circuit board(s) with your bare hands.
Do not work with dirty hands.
Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it, wipe it off thoroughly.)
Eject the disc before removing the audio-navigation unit to prevent damaging the CD/DVD player's load mechanism.

Make sure you have the 4-digit anti-theft code for the navigation system.

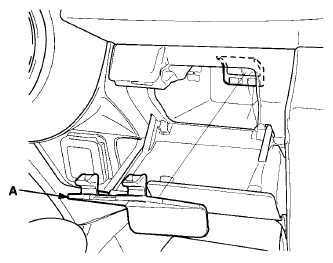

Open the center pocket and remove the center pocket cover (A).

Fig 1: Identifying Center Pocket Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the center lower trim (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).

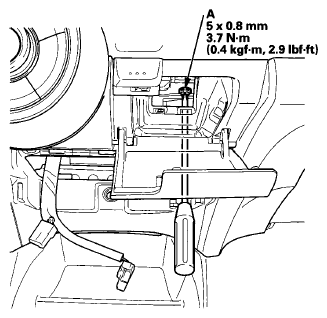

Remove the bolt (A).

Fig 2: Center Lower Trim Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the glove box (see GLOVE BOX STRIKER REPLACEMENT ).

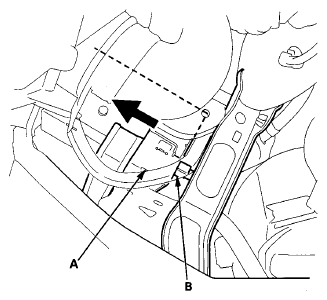

Push out the audio-navigation unit (A) from behind the unit, taking care not to damage the connector (B).
NOTE: Use your hand, do not use tools to push out the audio-navigation unit.

Fig 3: Identifying Audio-Navigation Unit And Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

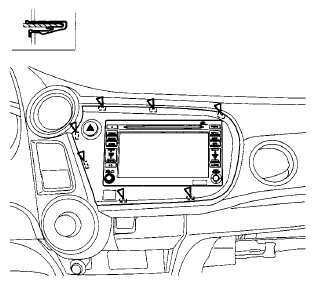

Lift the panel taking care not to damage the dashboard. Insert the appropriate tool into the gap between the dashboard and the panel, then release the clips in order from the gap side.

Fig 4: Identifying Clips, Dashboard And Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

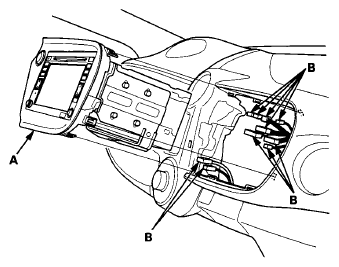

Pull out the center panel (A).

Fig 5: Identifying Center Panel And Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors (B), then remove the center panel.

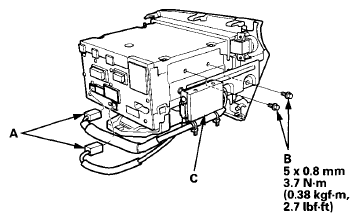

Disconnect the connectors (A).

Fig 6: Connectors, Bolts And FM Distributor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B) and the FM distributor (C).
Install the FM distributor in the reverse order of removal.
