Rear Camera

If you selected the Rear Camera, use the joystick to move the picture up/down or left/right, then select the Set to save the selection. Do not adjust the monitor position unless directed by a service bulletin. The Default resets the display position to factory specifications.

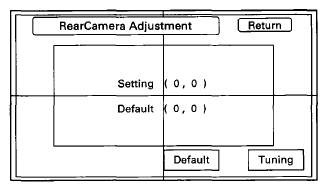

Fig 1: Navigation Display - Rear Camera Adjustment
G08095099Courtesy of AMERICAN HONDA MOTOR CO., INC.

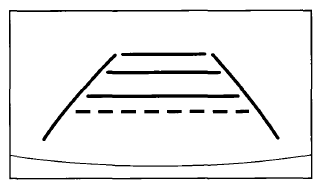

Fig 2: Navigation Display - Rear Camera
G08095100Courtesy of AMERICAN HONDA MOTOR CO., INC.
