Oil Pump Overhaul: Removal

  1. Remove the cam chain (see CAM CHAIN REMOVAL ).
  2. Remove the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT ).
  3. Attach the support eyelet to the cylinder block.
    Fig 1: Identifying Support Eyelet
    G08092043Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the engine support hanger (AAR-T1256), then attach the hook (A) to the support eyelet (B). Tighten the wing nut (C) by hand, and lift and support the engine/IMA motor/transmission.
    Fig 2: Supporting Engine/IMA Motor/Transmission
    G08092044Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the oil pan (see CONNECTING ROD JOURNAL CODE LOCATION ).
  6. Remove the oil screen (A), then remove the oil pump (B).

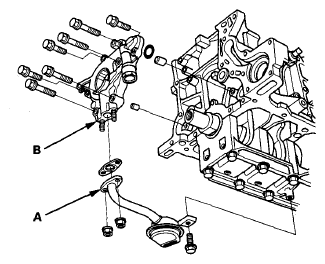

    Fig 3: Identifying Oil Screen And Oil Pump Assembly
    G08092045Courtesy of AMERICAN HONDA MOTOR CO., INC.
