Block Cover Removal and Installation

Remove the block cover (A).

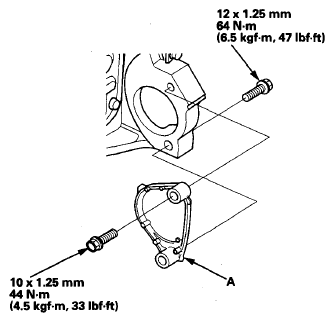

Fig 1: Block Cover And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the block cover in the reverse order of removal.
