EGR Pipe Removal and Installation: Removal
- Remove the cowl cover and the under-cowl panel (see
COWL COVER REPLACEMENT
).

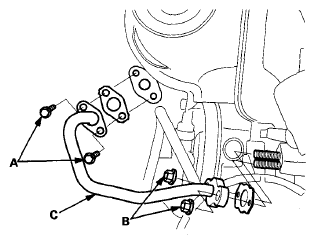

- Remove the bolts (A) and the nuts (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the EGR pipe (C).
