IMA Motor Rotor Position Sensor Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the IMA motor housing (see DRAIN COVER REMOVAL/INSTALLATION ).
Remove the bolts (A, B) and the IMA motor rotor position sensor (C).

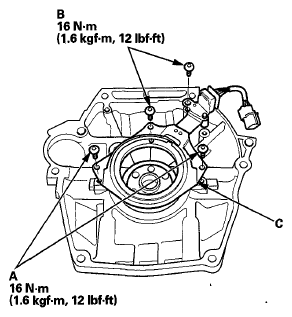

Fig 1: Bolts With Torque Specifications And IMA Motor Rotor Position Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
NOTE: Tighten the bolts (A) first, then tighten the bolts (B).
Do the motor rotor position calibration procedure (see IMA MOTOR ROTOR POSITION CALIBRATION ).
