Emblem/Sticker Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the emblems/sticker, take care not to scratch the body.

To remove the front "H" emblem, remove the upper front bumper grille (see UPPER FRONT BUMPER GRILLE REPLACEMENT ).
To remove the rear "H" emblem, remove the rear license trim (see REAR LICENSE TRIM REPLACEMENT ).
Clean the body surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
Apply the emblems/sticker where shown.

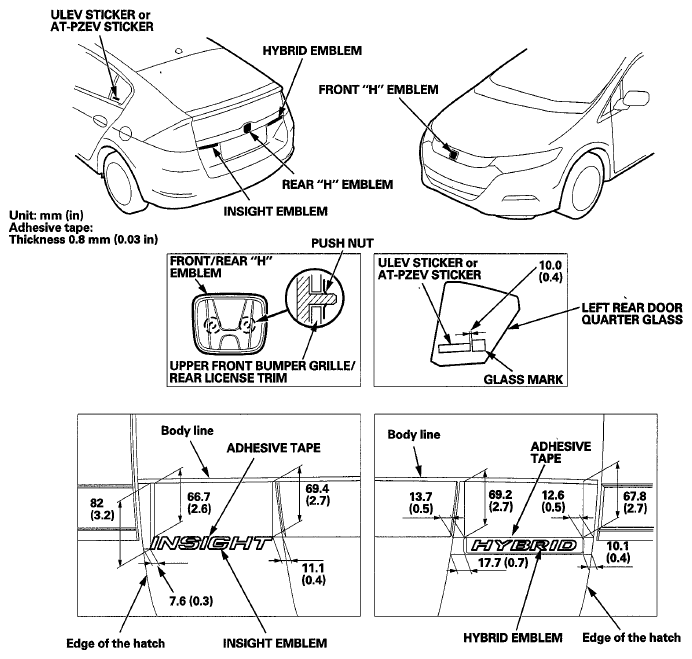

Fig 1: Identifying Emblem/Sticker Dimension

Courtesy of AMERICAN HONDA MOTOR CO., INC.
