ECON Switch Test/Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).

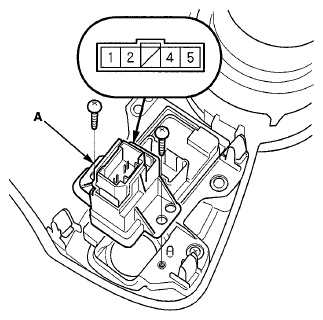

Remove the two screws and the ECON switch (A).

Fig 1: Identifying Screws And ECON Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch (A) or bulb (B).

Fig 3: Identifying Switch And Bulb
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
