Multi-information Switch Test/Replacement
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).

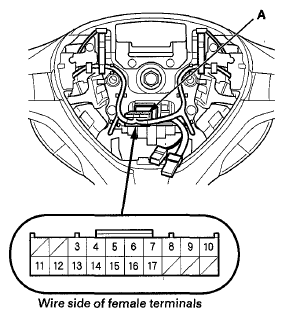

- Disconnect the 20P connector (A) from the cable reel.
- Measure the resistance between cable reel subharness 20P connector terminals No. 5 and No. 6 in each switch position according to the table.RESISTANCE CHART
Position Resistance ↑ About 33 Ω SEL/RESET About 1,043 Ω ↓ About 363 Ω - Without cruise control: if the resistance is not as specified, replace the switch (see
STEERING WHEEL DISASSEMBLY/REASSEMBLY
). If the switch is OK, but the system does not operate, check for the cable reel.
With cruise control: if the resistance is not as specified, go to step 5. If the check is OK, but the system does not operate, check for the cable reel.
- Remove the multi-information switch (A) (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
- Measure the resistance between multi-information switch 6P connector (B) terminals No. 2 and No. 5 in each switch position according to the table.RESISTANCE CHART
Position Resistance ↑ About 33 Ω SEL/RESET About 1,043 Ω ↓ About 363 Ω - If the resistance is not as specified, replace the switch. If the switch is OK, but the system does not operate, check for an open in the wire between the switch and the cable reel.
