Auxiliary Jack Assembly Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center lower trim (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Remove the 5P connector (A) from the auxiliary jack assembly (B).

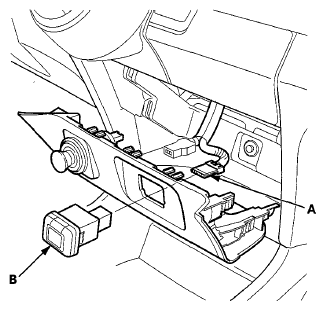

Fig 1: Identifying Auxiliary Jack Assembly And 5P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push out the auxiliary jack assembly from the center lower trim.
Install the auxiliary jack assembly (B) in the reverse order of removal.
