Driver's Door Lock Switch Test
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the power window master switch, and disconnect its connector (see POWER WINDOW MASTER SWITCH REPLACEMENT ).

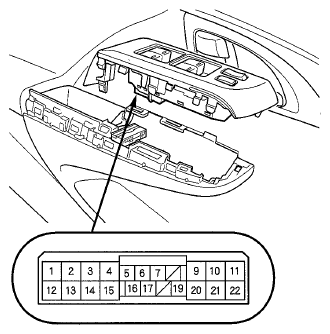

- Check for continuity between the power window master switch 22P connector terminals.
- There should be continuity between terminals No. 12 and No. 17 when the door lock switch is in the LOCK position.
- There should be no continuity between the terminals No. 12 and No. 17 when the door lock switch is in the neutral or UNLOCK position.
- There should be continuity between the terminals No. 12 and No. 19 when the door lock switch is in the UNLOCK position.
- There should be no continuity between the terminals No. 12 and No. 19 when the door lock switch is in the neutral or LOCK position.
- There should never be continuity between terminals No. 19 and No. 17 in any door lock switch position.
- If the continuity is not as specified, replace the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
