HFL Switch Test

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.

Remove the HFL-navigation voice control switch (see VOICE CONTROL SWITCH TEST ).

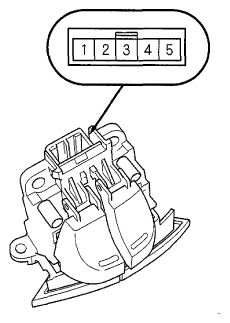

Fig 1: Identifying HFL-Navigation Voice Control Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the resistance between terminals No. 3 and No. 4 in each switch position according to the table.

HFL Switch

RESISTANCE REFERENCE CHART

Position	Resistance
No button pressed	About 1 k Ω
HFL Talk button pressed	About 185 Ω
HFL Back button pressed	About 45 Ω

If the resistance is not as specified, replace the HFL-navigation voice control switch (see VOICE CONTROL SWITCH TEST ).
