Circuit Diagram

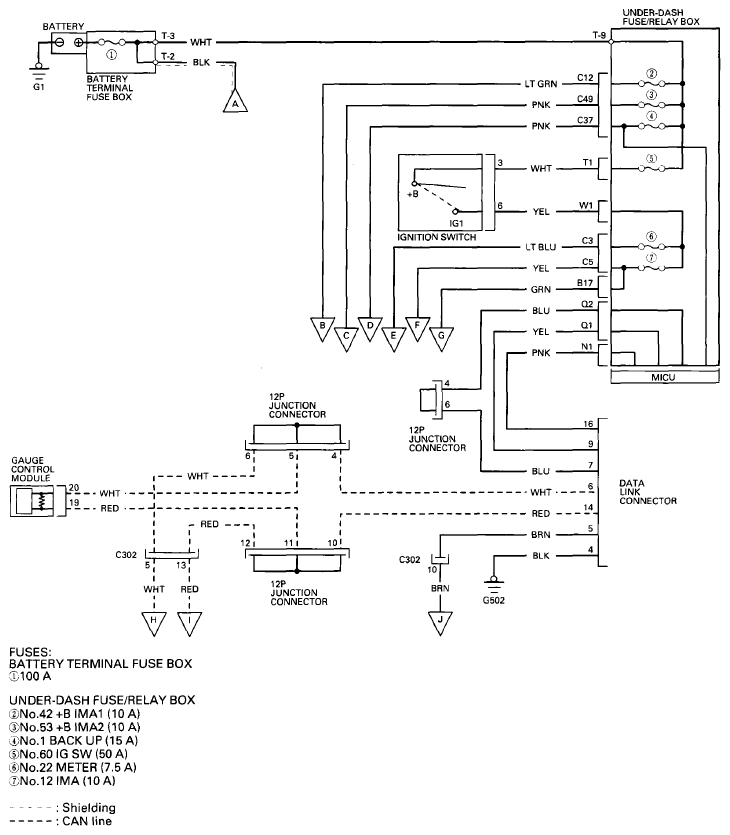

Fig 1: IMA System Circuit Diagram (1 Of 7)

G08092697

Courtesy of AMERICAN HONDA MOTOR CO., INC.

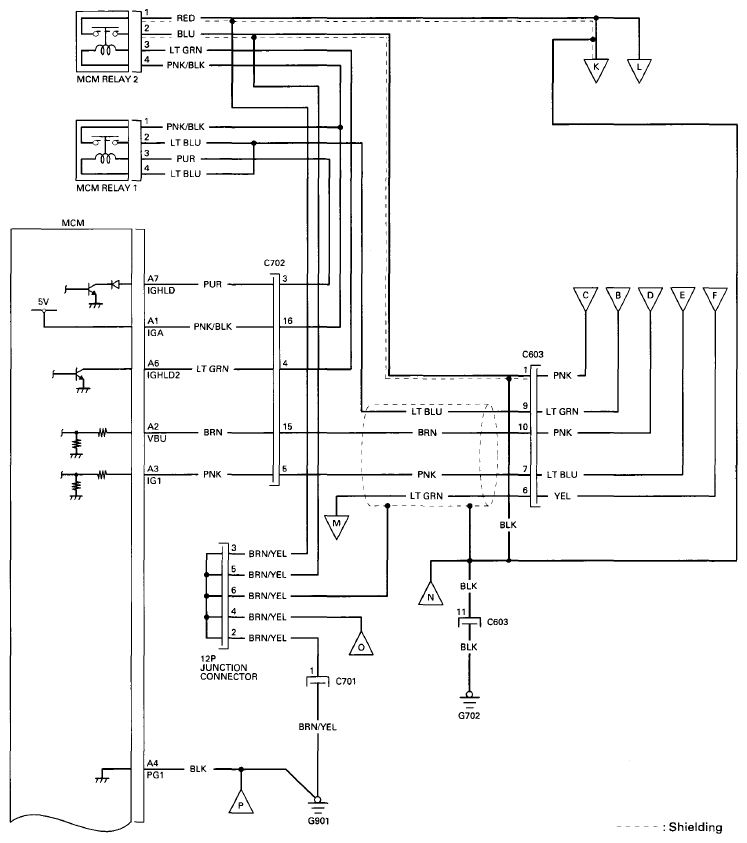

Fig 2: IMA System Circuit Diagram (2 Of 7)

G08092698

Courtesy of AMERICAN HONDA MOTOR CO., INC.

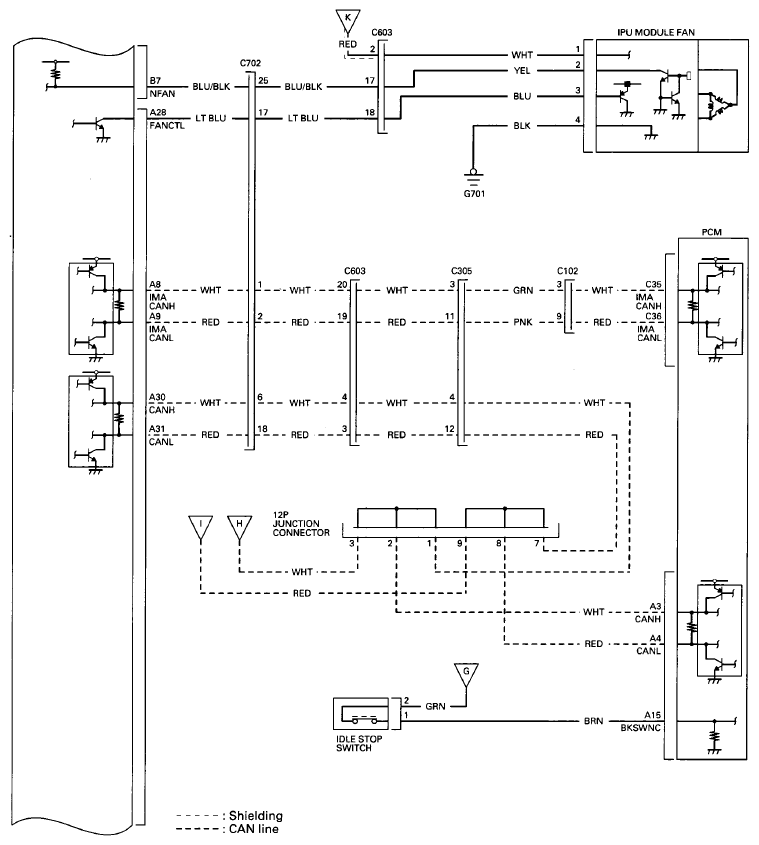

Fig 3: IMA System Circuit Diagram (3 Of 7)

G08092699

Courtesy of AMERICAN HONDA MOTOR CO., INC.

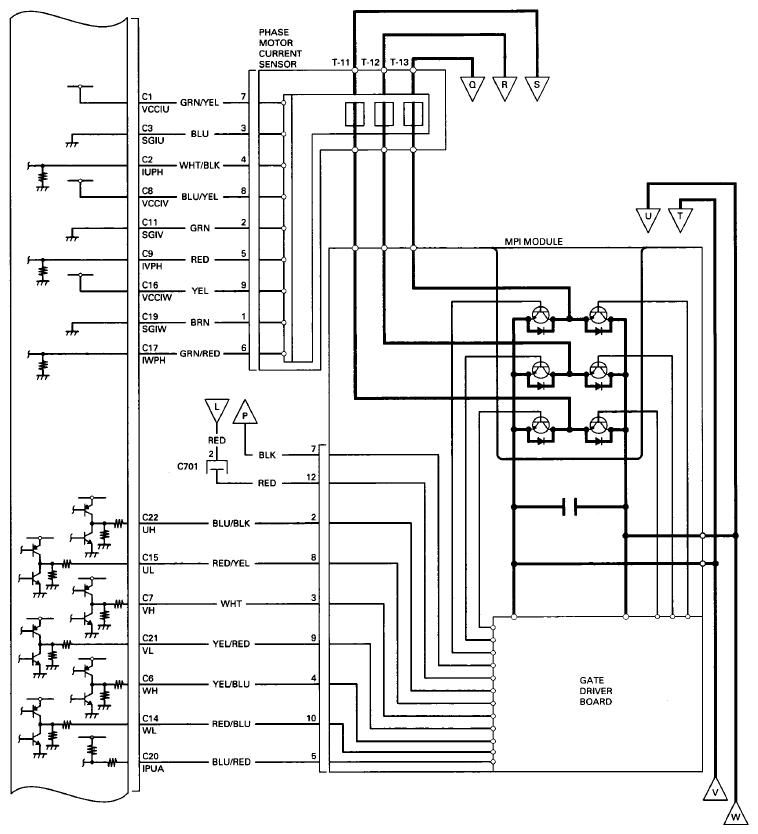

Fig 4: IMA System Circuit Diagram (4 Of 7)

G08092700

Courtesy of AMERICAN HONDA MOTOR CO., INC.

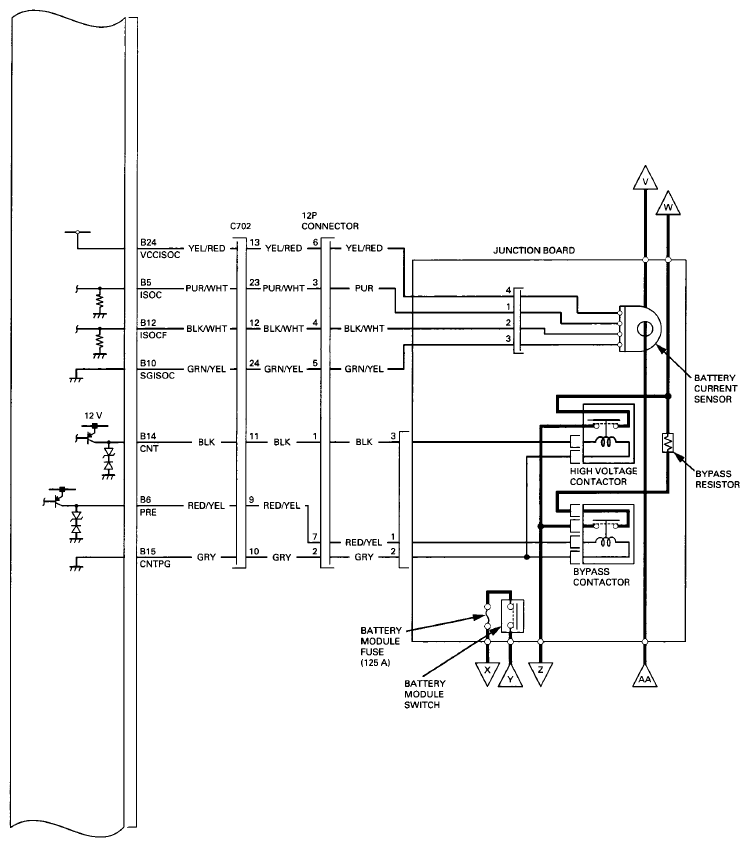

Fig 5: IMA System Circuit Diagram (5 Of 7)

G08092701

Courtesy of AMERICAN HONDA MOTOR CO., INC.

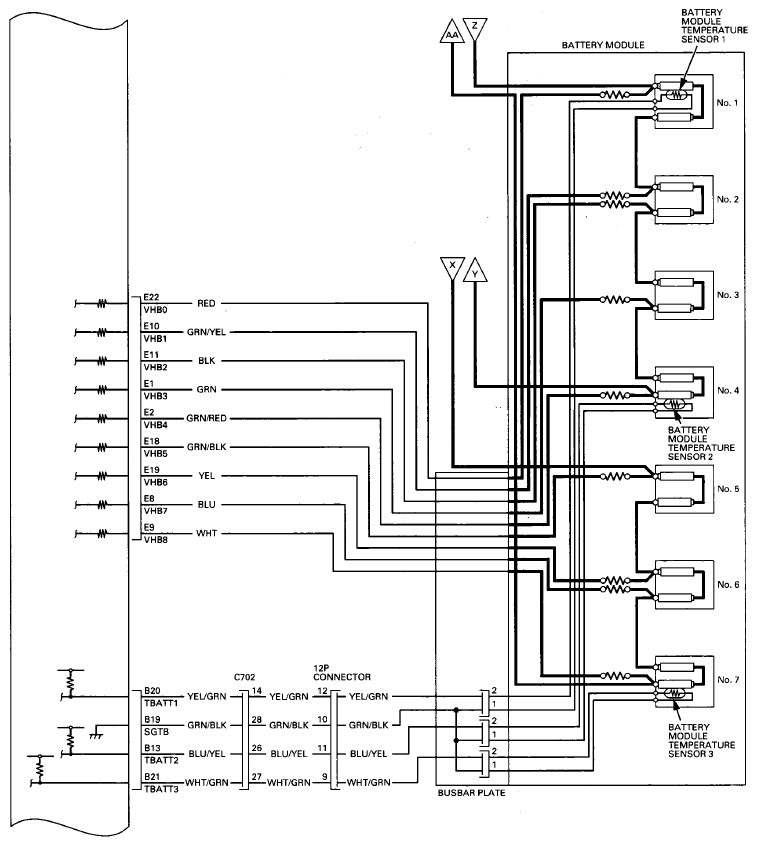

Fig 6: IMA System Circuit Diagram (6 Of 7)

G08092702

Courtesy of AMERICAN HONDA MOTOR CO., INC.

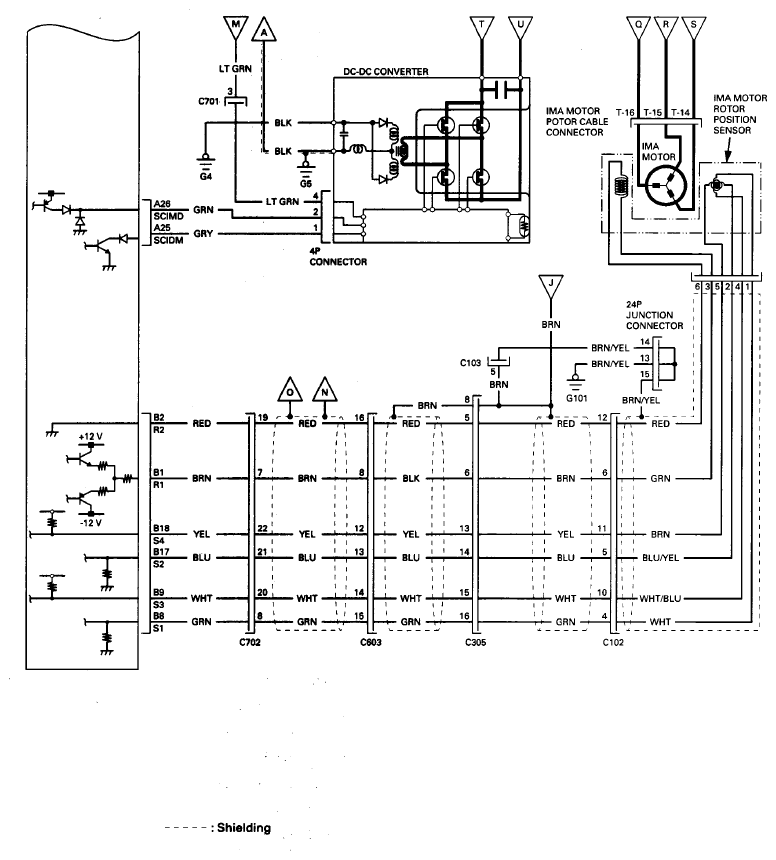

Fig 7: IMA System Circuit Diagram (7 Of 7)

G08092703

Courtesy of AMERICAN HONDA MOTOR CO., INC.

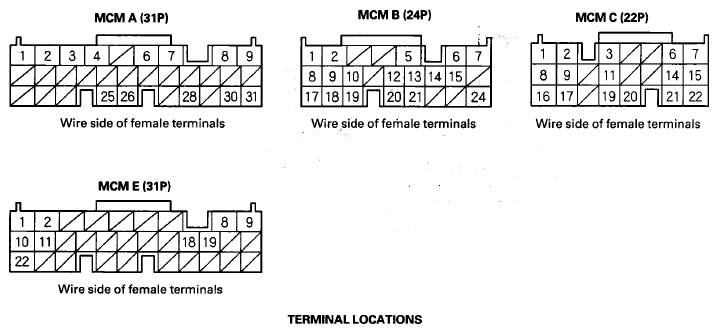

Fig 8: IMA System Connector Terminals Layout

G08092704

Courtesy of AMERICAN HONDA MOTOR CO., INC.
